Kód: | R310786 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
u vás: do 2 pracovních dní |
Množství: | ks |
|
Standardy
Obsah balení:
KÓD: R310786
R&M, Zásuvky | |
Standard | bezhalogenová, podle DIN/VDE 0472/815 |
Třída ochrany IP | IP 20 |
Osazení | neosazená |
Kapacita (portů) | 2 x 1 |
Typ | na omítku (SM) |
Výška | 80 mm |
Šířka | 80 mm |
Barva | 9010 čistě bílá |
Suitable for surface-mounted installations on walls and in ducts. Housing plus wallplate measures 80x80x67.5 mm. Cable entry at the side or the back. For use with cover frames and duct covers of Ø 60 mm in diameter or 56x56 mm cutouts.
Plastic: PC + ABS, halogen-free.
Suitable for RJ45 connection modules, connection module ISDN 2xRJ45 and fiberoptic connectors with support plates.
Scope of supply
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Contact resistance typical | surface-mounting (SM) |
Outlet type | outlet |
Capacity (ports) | 2 x 1 |
Color Code RAL | 9010 Pure white |
Assembly | empty |
Dimensions | 80 x 80 mm |
Material | plastic: PC + ABS |

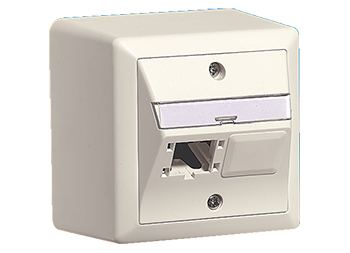

This outlet features an angled outlet hood of 30°, for surface-mounted installations, including a mounting plate, cover frame 80 x 80 mm, also including a labeling window and a module holder for 2 individual RJ45 modules, plus a blind cover for the use as a one-RJ45 outlet, to cover the unused port. Color: white (RAL 9010). Halogen-free in acc. with DIN/VDE 0472/815. Designed to accommodate the R&M security and the R&M environment system. The 3-level protection concept comprises the options color coding, mechanical-visual coding, and the locking of individual ports.
