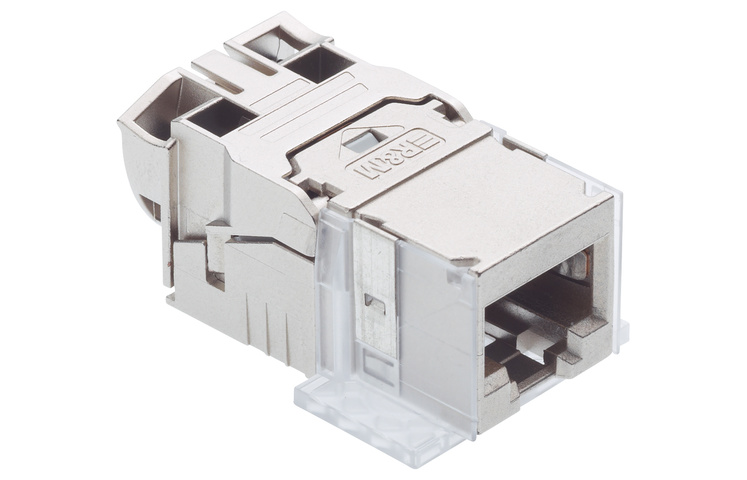

R&M, STP propojovací modul 1xRJ45/s, Cat.6A EL

Kód: R813504
  • R&M propojovací modul Cat. 6A EL, stíněný
  • modul pro klasickou kancelářskou kabeláž
  • jednoduše instalovatelný se solidním Cat. 6A výkonem
Cena: dostupná po přihlášení
Dostupnost: Brno

Praha

u vás: do 2 pracovních dní
Množství:  ks
  • R&M propojovací modul Cat. 6A EL
  • modul pro klasickou kancelářskou kabeláž
  • jednoduše instalovatelný se solidním Cat. 6A výkonem



Standardy

  • UL Recognized
  • IEC 60603-7-51: Electrical Characteristics of the Telecommunication Outlets
  • ISO/IEC 11801 ed. 2.2: June 2011
  • EN 50173-1: May 2011



Obsah balení:

  • RJ45 Cat. 6A EL propojovací modul, stíněný
  • Montážní deska
  • Prachová krytka



KÓD: R813504

Technická specifikace

R&M, Moduly
Třída ochrany IP IP 20
PoE Ano
Třída konektoru Connection module
Stínění Stíněný
Typ konektoru RJ45
Kategorie Cat. 6A ISO
Držák pro konektor / modul Montážní deska
Schéma zapojení TIA-568A / TIA-568B
Póly 8
Barva kovová

Originální text

Connection Module Cat. 6A EL, 1xRJ45/s

The module for the classic office cabling. Easy to install with solid Cat. 6A performance.



Scope of supply

  • RJ45 Cat. 6A EL connection module, shielded
  • Mounting plate
  • Dust cover

The R&Mfreenet Cat. 6A EL connection modules, part of the Freenet cabling system, are ideal for voice, fast data transmissions and high bandwidth applications. This highperformance Cat. 6A module is perfect for use in 10 Gigabit Ethernet (10GBASE-T) and future high-speed applications up to 500 MHz.





More efficiency

  • Just two components
  • Terminated in just a few steps
  • Integrated strain relief
  • Automatic shield termination
  • Installation not requiring specialized knowledge



More flexibility

  • Shielded and unshielded
  • For all cable types and diameters
  • Can be rewired
  • Compatible with common platforms



More security

  • Fully tested
  • Reliable insulation displacement contacting (IDC)
  • Independently certified
  • R&M warranty program Productive
  • Meets the Cat. 6A ISO component specification (for the entire re-embedded plug range as specified by the standards ISO/IEC 11801, EN 50173, TIA 568-C.2, IEC 60603-7-51 and 60603-7
  • Exceeding the IEEE 802.3 an minimum requements for 10GBASE-T performance
  • Achieves best transmission characteristics with R&Mfreenet Cat. 6A patch cables
  • Gold-plated contact area and tin-plated insulation displacement contact area
  • Capacitive and inductive compensation
  • Compatible with Cat. 6A standard patch cords and cables
  • Full mechanical and electrical backward compatibility with Cat. 5e/6
  • RJ-11/12/14 compatible
  • Fits into 3rd party outlets and patchpanel with 4 different adapter
  • Tool-free (w/o special tools) connection of installation cables of AWG 22 - 26 plus stranded cables of AWG 22/7 - 26/7
  • Wiring option according to TIA 568 A and B with parallel termination of the pairs without splitting of pair 3,6
  • Label with color wiring chart, integrated production date and serialnumber (each module) for quality tracing
  • Halogen-free materials
  • PoE and PoE+ compatible
  • 3P certified



Standards

  • UL Recognized
  • IEC 60603-7-51: Electrical Characteristics of the Telecommunication Outlets
  • ISO/IEC 11801 ed. 2.2: June 2011
  • EN 50173-1: May 2011



General Data

Description [Unit] Value/Value range
Connector class connection module
Connector type (A) RJ45
Category connector (A) Cat. 6A ISO
Shielding connector (A) Yes
Holder for connector / module Mounting plate
Color metallic
Wiring diagram TIA-568A / TIA-568B
Poles 8





RJ45 connection module of Cat. 6A ISO, for the setting up of transmission channels of Class EA with up to 4 connectors acc. to ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1 May 2011 (DIN EN 50173-1), complies with Cat. 6Arequirements of the standards ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1 May 2011, as well the U.S. standard Cat. 6A according to TIA 568-C.2, re-embedded tested in acc. with IEC 60603-7-51 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

Tested in line with R&M's manufacturing control, performing 100% inspection. Each module has an own serial number and is traceable.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with ≥4 insertion cycles acc. to IEC 60352-3, contact resistance 1000 Veff. PoE and PoE+ compatible according to IEC 60512-99-001. With integral cable strain relief, including dust cover, nickel plated zinc die-cast housing, ground contacting through 1 contact finger for flat connectors AMP 2.8 x 0.5 mm.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 6A EL, die-cast, shielded, dust cover and mounting plate.
