Kód: | R925370 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
u vás: do 2 pracovních dní |
Množství: | ks |
|
Standardy
Obsah balení:
KÓD: R925370
R&M, Moduly | |
Třída ochrany IP | IP 20 |
PoE | Ano |
Třída konektoru | Connection module |
Stínění | Stíněný |
Typ konektoru | RJ45 |
Kategorie | Cat. 5e |
Držák pro konektor / modul | Montážní deska |
Schéma zapojení | TIA-568A / TIA-568B |
Póly | 8 |
Výška | 16.8 mm |
Šířka | 22.8 mm |
Hloubka | 41.6 mm |
Barva | světlá šedá |

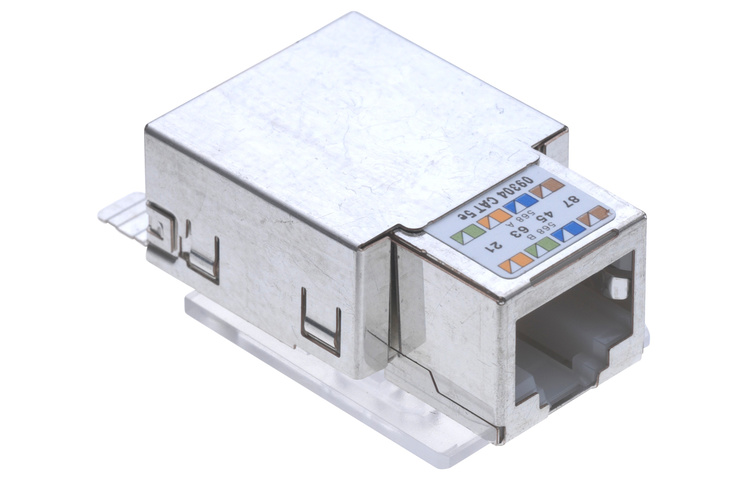

R&M’s Cat. 5e connection modules, from the R&Mfreenet cabling system, are ideal for voice and fast data transmissions. This high-performance Cat. 5e module is perfect for use in 1 Gigabit Ethernet (1GBASE-T) applications to 100 MHz.
Scope of supply
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Connector class | connection module |
Connector type (A) | RJ45 |
Category connector (A) | Cat. 5e |
Shielding connector (A) | Yes |
Holder for connector / module | Mounting plate |
Color | light gray |
Wiring diagram | TIA-568A / TIA-568B |
Poles | 8 |
Dimensions | 16.8 x 22.8 x 41.6 mm |
Material | plastic: PC, UL 94 V-0 |
RJ45 connection module of Category 5, for the setting up of transmission channels of class D with up to 4 plugged connections and class E with up to 2 plugged connections when using a R&M Cat. 7 system cable, complies with Category 5 requirements of the standards ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1, May 2011 (DIN EN 50173-1) as well as TIA 568-C, de-embedded tested in acc. with IEC 60603-7-3, interoperable and backwards compatible with Category 5e (2000) and Category 5 (1995).
Suitable for 1GBASE-T applications in acc. with IEEE 802.3™ Section Three over 100 m.
Tested in line with R&M's manufacturing control, performing 100% inspection.
Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 24 – 22 (0.5 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 (as of production date 07461). Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance 1000 Veff. PoE and PoE+ compatible according to IEC 60512-99-001. Shield contacting by patented shield lance with integral cable strain relief, shield material tin-coated bronze, ground contacting through 2 contact fingers for flat connectors 4.8 x 0.5 mm, with EMC cover.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Connection module Cat. 5e, with dust cover, EMC cover, mounting plate, cable tie and installation instructions.
