Kód: | R503806 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|
Pojme až šestnáct Global stíněných držitelů připojení modulu 2U či 2U Global záslepek. Max. kapacita 48 stíněných RJ45 pro připojení modulů.
Standardy
Obsah balení:
KÓD: R503806
R&M, Patch panely neosazené | |
Třída ochrany IP | IP 20 |
Poe | Ano |
Stínění | Ne |
Osazení | prázdný |
Šířka (palec) ["] | 19 |
Rack montážní verze | patch panel |
Kapacita (portů) | 48 |
Výška jednotky (U) [U] | 2 |
Barevný kód NCS | S 2502-B |
Barva | středně šedá |
Rozměry | 88.1 x 482.6 x 82 mm |
Materiál | hliník, plast: PC, vyztužený skelným vláknem, bezhalogenový |
Holds up to sixteen 2U Global/s connection module holders or 2U Global blind covers. Max. capacity of 48 RJ45/s connection modules.
Scope of supply
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Fastening (inch) ["] | 19 |
Height units (U) [U] | 2 |
Rack mounting version | patch panel |
Capacity (ports) | 48 |
Shielding connector (A) | Yes |
Color Code NCS | S 2502-B |
Color | medium gray |
Assembly | empty |
Dimensions | 88.1 x 482.6 x 82 mm |
Material | aluminum / plastic: PC, fiber-glass reinforced, halogen-free |

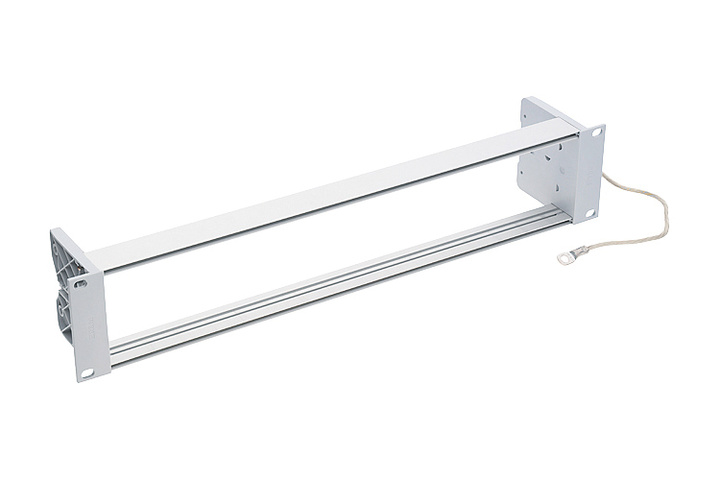

Modular patch panel accommodating up to sixteen connection module holders 2U Global/s, installation-friendly thanks to snap-and-go technique, featuring a complete grounding system and 2U Global blind cover. Designed to accommodate Designed to accommodate the R&M security and the R&M environment system, with its 3-level protection concept: color coding, mechanical coding, locking option. Exchangeable labeling strips, fastening kit, labeling fields, tool-free locking and unlocking system. Automatic ground contacting by spring contacts. Profile aluminum, colorless chromatized; side panel plastic (PC), fiberglass-reinforced, halogen-free, color medium gray (NCS 2502-B).
With a capacity of up to 48 shielded RJ45 connection modules of Category 5, class D, Category 6, class E and Real10 Category 6, class E and class EA for the establishing of transmission channels with up to 4 plugged connections.
