Kód: | R512416 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|

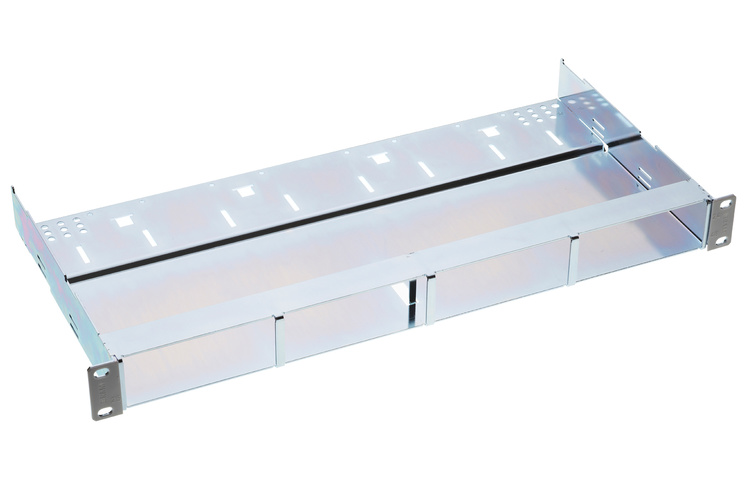

Kovový patch panel s integrovaným panelem pro kabelové svazky. Připraven pro všechny HD vstupy (měď / FO).
Standardy
Obsah balení
KÓD: R512416
R&M, Patch panely neosazené | |
Třída ochrany IP | IP 20 |
Osazení | prázdný |
Šířka (palec) ["] | 19 |
Rack montážní verze | sub-rack |
Kapacita (portů) | 24 / 48 |
Výška jednotky (U) [U] | 1 |
Barevný kód NCS | 2502-B |
Barva | ocelová, modrá, chromová/ přední část šedá |
Rozměry | 43.2 x 482.6 x 225 mm |
Materiál | ocel: DC01 (1.0330), 1.5 mm |
Metal patch panel with integrated cable tie shelf. Ready for all HD inserts (copper / FO).
Scope of supply
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Fastening (inch) ["] | 19 |
Height units (U) [U] | 1 |
Rack mounting version | sub-rack |
Capacity (ports) | 24 / 48 |
Color | steel, blue, chromatized / front, gray (NCS 2502-B) |
Assembly | empty |
Dimensions | 43.2 x 482.6 x 225.0 mm |
Material | steel: DC01 (1.0330), 1.5 mm |
Modular patch panel with integrated cable tie shelf, accommodating up to four connection module holders HD Panel, installation-friendly thanks to snap-and-go technique, featuring a complete grounding system and optional blind covers. Designed to accommodate the R&M HD security system, with its 2-level protection concept: color coding, locking option or automated infrastructure management systems. Optional labeling strips, fastening kit, integrated port numbering, tool-free locking and unlocking system. Automatic ground contacting by spring contacts. Sub-rack material sheet steel, colorless chromatized, side panels plastic (PC), halogen-free, color medium gray (NCS 2502-B).
With a capacity of up to 48 shielded or unshielded RJ45 connection modules of Cat. 6A ISO, for the setting up of transmission channels of Class EA with up to 4 plugged connections.
