Kód: | R305890 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|

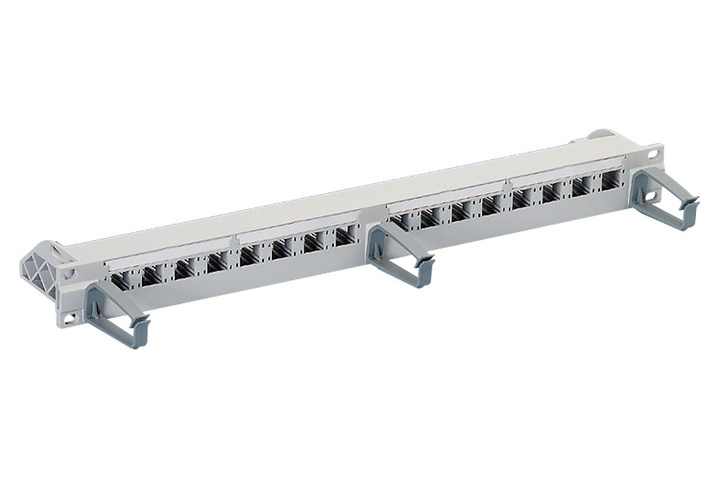

S kapacitou pro 16 nestíněných propojovacích modulů RJ45 nebo 4 optické moduly 1U.
Standardy
Obsah balení:
KÓD: R305890
R&M, Patch panely neosazené | |
Třída ochrany IP | IP 20 |
Stínění | Ne |
Držák pro konektor / modul | montážní deska |
Osazení | prázdný |
Šířka (palec) ["] | 19 |
Rack montážní verze | patch panel |
Kapacita (portů) | 16 |
Výška jednotky (U) [U] | 1 |
Barevný kód NCS | S 2502-B |
Barva | středně šedá |
Rozměry | 43.2 x 482.2 x 106 mm |
Materiál | plast: PC, vyztužený skelným vláknem |
With a capacity for 16 unshielded RJ45 connection modules or 4 FiberModuls 1U.
Scope of supply
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Fastening (inch) ["] | 19 |
Height units (U) [U] | 1 |
Rack mounting version | patch panel |
Capacity (ports) | 16 |
Shielding connector (A) | No |
Holder for connector / module | Mounting plate |
Color Code NCS | S 2502-B |
Color | medium gray |
Assembly | empty |
Dimensions | 43.2 x 482.2 x 106 mm |
Material | plastic: PC, fiber-glass reinforced |
Patch panel with integrated cable tie shelf, 19" fastening kit, labeling field, integral cable guiding on the same height unit, designed to accommodate the R&M security and the R&M environment system, halogen-free materials, color patch panel medium gray (NCS 2502-B), jumpering bracket gray (RAL 7000).
With a capacity of up to 16 unshielded RJ45 connection modules of Category 5, class D, Category 6, class E, Real10 Category 6 and Category 6A, class EA, for the establishing of transmission channels with up to 4 plugged connections or 4 FiberModuls 1U, splice or breakout version, for 16 E-2000™ Compact or SC-RJ adapters.
