Kód: | R812470 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|
Standardy
Obsah balení:
KÓD: R812470
R&M, Patch panely osazené | |
Třída ochrany IP | IP 20 |
PoE | Ano |
Stínění konektorů | Stíněné |
Typ konektorů | RJ45 |
Kategorie konektorů | Cat. 5e |
Počet konektorů | 24 |
Držák pro konektor / modul | Speciál (bez montážní desky) |
Rack montážní verze | sub-rack |
Osazení | plně osazen |
Šířka (palec) ["] | 19 |
Kapacita (portů) | 24 |
Výška jednotky (U) [U] | 1 |
Výška | 43.65 mm |
Šířka | 482.6 mm |
Hloubka | 98.4 mm |
Barva | S 2502-B |
Scope of supply
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Fastening (inch) ["] | 19 |
Height units (U) [U] | 1 |
Rack mounting version | sub-rack |
Capacity (ports) | 24 |
Number of connectors (A) | 24 |
Connector type (A) | RJ45 |
Category connector (A) | Cat. 5e |
Shielding connector (A) | Yes |
Protection class IP (A) | IP 20 |
Holder for connector / module | Special (without mounting plate) |
Color Code NCS | S 2502-B |
Color | medium gray |
Assembly | fully populated |
Dimensions | 43.65 x 482.6 x 98.4 mm |
Material | plastic: PC, fiber-glass reinforced |

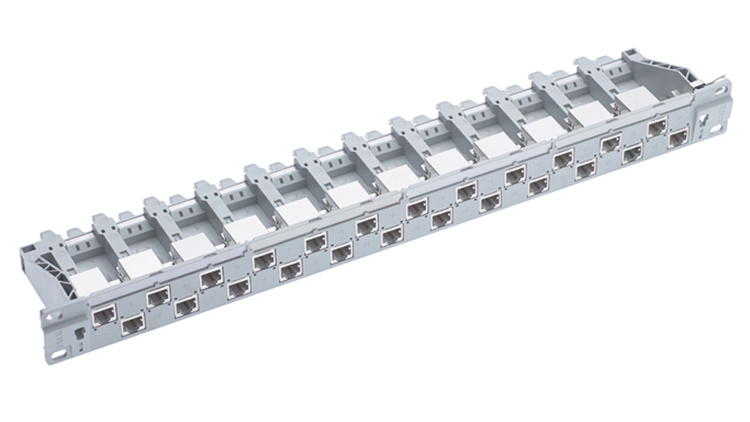

Modular patch panel with integrated cable tie shelf, integrated grounding system, 19" fastening kit, labeling fields with exchangeable labeling strips, prepared for optional two patch cord rings. The ports are prepared for a visual color coding system. Panel polycarbonate, fiber-glass-reinforced, halogen-free material, UL 94 listed. Color medium gray, NCS 2502-B.
24 ports populated with
RJ45 connection module of Category 5, for the setting up of transmission channels of class D with up to 4 plugged connections and class E with up to 2 plugged connections when using a R&M Cat. 7 system cable, complies with Category 5 requirements of the standards ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1, May 2011 (DIN EN 50173-1) as well as TIA 568-C, de-embedded tested in acc. with IEC 60603-7-3, interoperable and backwards compatible with Category 5e (2000) and Category 5 (1995).
Suitable for 1GBASE-T applications in acc. with IEEE 802.3™ Section Three over 100 m.
Tested in line with R&M's manufacturing control, performing 100% inspection.
Compatible with RJ standard plugs (RJ11, RJ12, RJ45), PCB-free and tool-free Easy-Lock connection of installation cables AWG 24 – 22 (0.5 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 (as of production date 07461). Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with single-wire strain relief and >20 insertion cycles, contact resistance 1000 Veff. PoE and PoE+ compatible according to IEC 60512-99-001. Shield contacting by patented shield lance with integral cable strain relief, shield material tin-coated bronze, ground contacting through 2 contact fingers for flat connectors 4.8 x 0.5 mm, with EMC cover.
Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Connection module Cat. 5e, with EMC cover, dust cover, cable tie and installation instructions.
