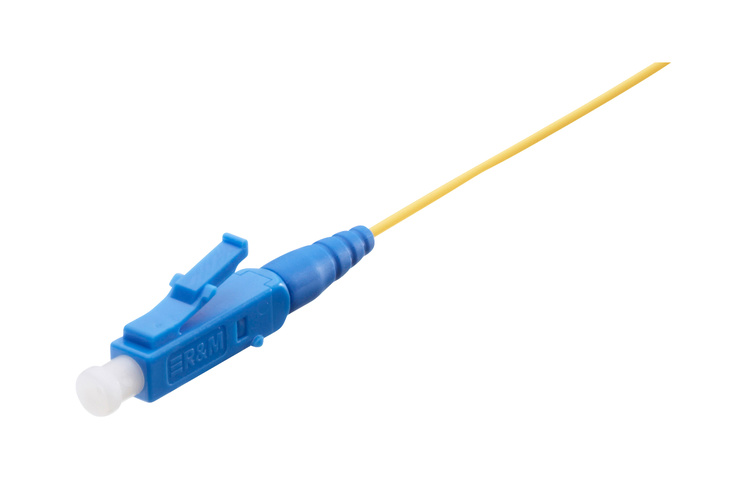

R&M, Pigtail LC PC, blue, G.652.D yellow, C/2, 2.5 m
| Kód: | R803544 |
- Polotěsná ochrana Ø 0,9 mm jedna strana vybavená konektorem LC
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Kompaktní konstrukce (SFF)
- 1,25 mm ferrule technologie
- Uzamykací typ s blokovaným zasunutím
Obsah balení:
- Polotěsná ochrana (semi-tight buffer) Ø 0,9 mm jedna strana vybavená konektorem LC
Standardy
- Konektor LC podle IEC 61754-20
Technická specifikace
| R&M, Pigtaily | |
| Třída kabelu | pigtail |
| Třída konektoru | konektor |
| Typ konektoru | LC |
| Třída ochrany IP | IP20 |
| Zabroušení | PC |
| Útlum IL | C |
| Útlum odrazu RL | 2 |
| Barva konektoru | modrá |
| Třída kabelu | G.652.D (OS1, OS2) |
| Celkový průměr kabelu | Ø 0.9 mm |
| Typ drátu | polotuhá ochrana, suchá |
| Průměr vlákna | E9 / 125 µm |
| Typ vlákna | singlemode (SM) |
| Barva | polotěsná ochrana, žlutá |
Originální text
Compact design (SFF). 1.25 mm ferrule technology. Locking type latched push-pull.
Scope of supply
- Semi-tight buffer Ø 0.9 mm one side fitted with LC connector
Standards
- LC connector acc. to IEC 61754-20
General Data
| Description [Unit] | Value/Value range |
|---|---|
| Cable class | pigtail |
| Connector class | connector |
| Number of connectors (A) | 1 |
| Connector type (A) | LC |
| Protection class IP (A) | IP 20 |
| Polishing plug (A) | PC |
| Attenuation grade IL (A) | C |
| Return loss grade RL (A) | 2 |
| Connector color (A) | blue |
| Fiber class | G.652.D (OS1, OS2) |
| Cable overall diameter | Ø 0.9 mm |
| Wire type | semi-tight buffer, dry |
| Fiber diameter | E9 / 125 µm |
| Fiber type | singlemode (SM) |
| Color | semi-tight buffer, yellow |
| Cable length [m] | 2.5 |
Pigtail with semi-tight buffer PA/PBT, Ø 0.9 mm, yellow, singlemode G652.D 9/125 µm (OS1, OS2), length 2.5 m. Fitted with one LC connector in acc. with IEC 61754-20. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors tuned in accordance with IEC 61755-3-1 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment). Blue connector housing (singlemode), material PEI / UL 94 V-0, blue strain relief and white plastic dust cover.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
- Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB
- Return loss (RL) Grade 2: ≥ 45 dB
Mechanical specifications:
- Mating cycles: delta IL < 0.2 dB after 500 mating cycles
- Pull-out force fiber pigtail: ≥ 5 N
