Kód: | R30964 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|
Obsah balení:
Standardy
R&M, Pigtaily | |
Třída kabelu | pigtail |
Třída konektoru | konektor |
Typ konektoru | E-2000 |
Třída ochrany IP | IP20 |
Zabroušení | PC |
Útlum IL | C |
Útlum odrazu RL | 2 |
Barva konektoru | modrá |
Třída kabelu | G.652.D (OS1, OS2) |
Plášť kabelu | LSZH |
Celkový průměr kabelu | Ø 0.9 mm |
Typ drátu | polotěsná ochrana, suchá |
Průměr vlákna | E9 / 125 µm |
Typ vlákna | singlemode (SM) |
Barva | polotuhá ochrana, žlutá |
Integrated spring-loaded shutter for dust and scratching protection. Locking type latched push-pull. Injection-molded PBT housing, UL 94 V-0 (flammability index).
Scope of supply
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Cable class | pigtail |
Connector class | connector |
Number of connectors (A) | 1 |
Connector type (A) | E-2000™ |
Protection class IP (A) | IP 20 |
Polishing plug (A) | PC |
Attenuation grade IL (A) | C |
Return loss grade RL (A) | 2 |
Connector color (A) | blue |
Lever- / frame-coding (A) | Color |
Lever color (A) | blue |
Fiber class | G.652.D (OS1, OS2) |
Cable jacket material | LSZH |
Cable overall diameter | Ø 0.9 mm |
Wire type | semi-tight buffer, dry |
Fiber diameter | E9 / 125 µm |
Fiber type | singlemode (SM) |
Color | semi-tight buffer, yellow |
Cable length [m] | 2.5 |

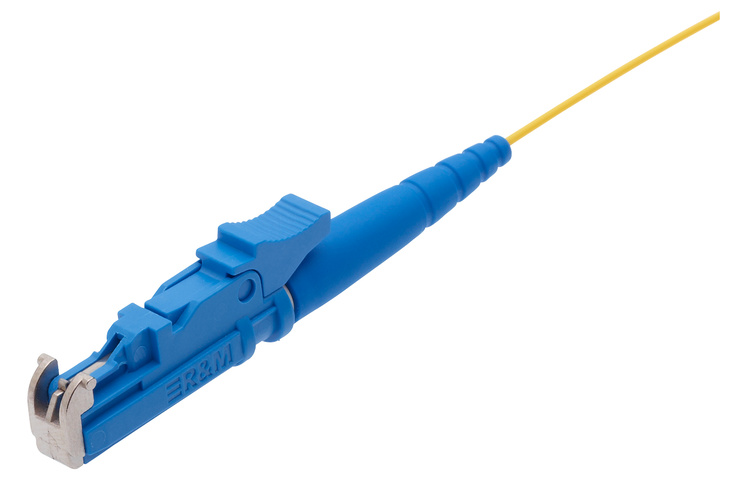

Pigtail with semi-tight buffer PA/PBT, Ø 0.9 mm, yellow, singlemode G652.D 9/125 µm (OS1, OS2), length 2.5 m. Fitted with one E-2000™ (LSH) connector in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with a PC polished endface geometry, connectors tuned in accordance with IEC 61755-3-1 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment) and category E (extreme environment). Blue connector housing (singlemode) and blue lever, material PBT / UL 94 V-0, blue strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Mechanical specifications:
