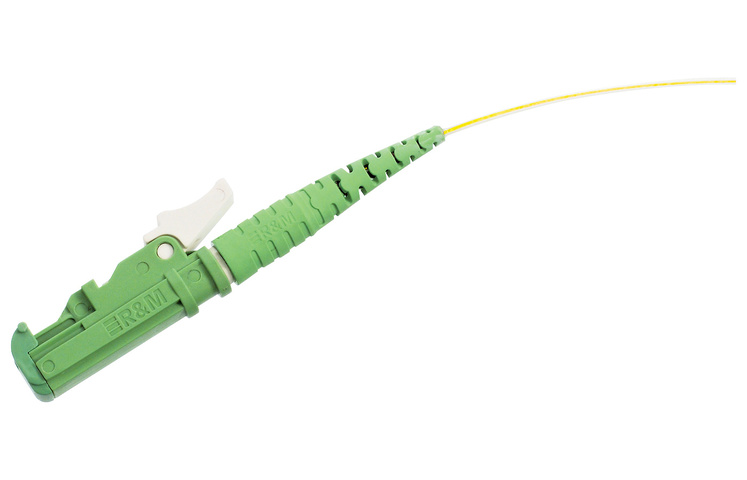

R&M, Pigtail E-2000™ APC, green/white, G.652.D yellow, C/1, 2.5 m
| Kód: | R30967 |
- Integrovaná pružinová závěrka pro ochranu proti prachu a poškrábání
- Uzamykací typ s blokovaným zasunutím
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Integrovaná pružinová závěrka pro ochranu proti prachu a poškrábání
- Uzamykací typ s blokovaným zasunutím
- Vstřikované těleso PBT, UL 94 V-0 (index hořlavosti)
Obsah balení:
- Polotěsná ochrana (semi-tight buffer) Ø 0,9 mm jedna strana vybavená konektorem E-2000 ™
Standardy
- Konektor E-2000 ™ (LSH) podle Podle IEC 61754-15 a EN 186270
Technická specifikace
| R&M, Pigtaily | |
| Třída kabelu | pigtail |
| Třída konektoru | konektor |
| Typ konektoru | E-2000 |
| Třída ochrany IP | IP20 |
| Zabroušení | APC 8° |
| Útlum IL | C |
| Útlum odrazu RL | 1 |
| Barva konektoru | zelená, bílá |
| Třída kabelu | G.652.D (OS1, OS2) |
| Plášť kabelu | LSZH |
| Celkový průměr kabelu | Ø 0.9 mm |
| Typ drátu | polotuhá ochrana, suchá |
| Průměr vlákna | E9 / 125 µm |
| Typ vlákna | singlemode (SM) |
| Barva | polotěsná ochrana, žlutá |
Originální text
Integrated spring-loaded shutter for dust and scratching protection. Locking type latched push-pull. Injection-molded PBT housing, UL 94 V-0 (flammability index).
Scope of supply
Semi-tight buffer Ø 0.9 mm one side fitted with E-2000™ connector
Standards
- E-2000™ (LSH) connector acc. to IEC 61754-15 and EN 186270
General Data
| Description [Unit] | Value/Value range |
|---|---|
| Cable class | pigtail |
| Connector class | connector |
| Number of connectors (A) | 1 |
| Connector type (A) | E-2000™ |
| Protection class IP (A) | IP 20 |
| Polishing plug (A) | APC 8° |
| Attenuation grade IL (A) | C |
| Return loss grade RL (A) | 1 |
| Connector color (A) | green |
| Lever- / frame-coding (A) | Color |
| Lever color (A) | white |
| Fiber class | G.652.D (OS1, OS2) |
| Cable jacket material | LSZH |
| Cable overall diameter | Ø 0.9 mm |
| Wire type | semi-tight buffer, dry |
| Fiber diameter | E9 / 125 µm |
| Fiber type | singlemode (SM) |
| Color | semi-tight buffer, yellow |
| Cable length [m] | 2.5 |
Pigtail with semi-tight buffer PA/PBT, Ø 0.9 mm, yellow, singlemode G652.D 9/125 µm (OS1, OS2), length 2.5 m. Fitted with one E-2000™ (LSH) connector in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment) and category E (extreme environment). Green connector housing (singlemode) and white lever, material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
- Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB
- Return loss (RL) Grade 1: ≥ 60 dB (typical ≥ 80 dB)
Mechanical specifications:
- Mating cycles: delta IL < 0.2 dB after 1000 mating cycles
- Pull-out force fiber pigtail: ≥ 5 N
