Kód: | R820420 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|
Standardy
R&M, Adaptéry | |
Třída konektoru | adaptér |
Typ konektoru | LC.Duplex |
Třída ochrany IP | IP20 |
Zabroušení | PC |
Útlum IL | M |
Barva konektoru | béžová |
Materiál obalu | keramický |
Způsob upevnění obalu | koncový uzávěr Snap-In |
Typ vlákna | multimode (MM) |
Rozměry | 55/ 29.2 x 15.5 x 9.35 mm |
Materiál | Ocel: X10CrNi18-8 (1.4310) / plast: PBT, vyztužený skelným vláknem (bez halogenů) |

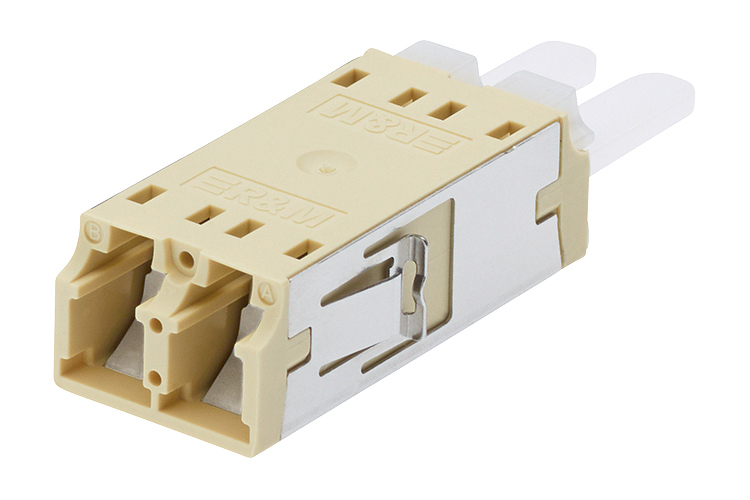

LC-Duplex adapter flangeless with semi-transparent dust caps. Quick mounting clip integrated.
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Connector class | adapter |
Number of connectors (A) | 1 |
Connector type (A) | LC-Duplex |
Protection class IP (A) | IP 20 |
Polishing plug (A) | PC |
Attenuation grade IL (A) | M |
Connector color (A) | beige |
Sleeve material | ceramic |
Adapter fastening method | end cap snap-in |
Fiber type | multimode (MM) |
Dimensions | 55 / 29.2 x 15.5 x 9.35 mm |
Material | steel: X10CrNi18-8 (1.4310) / plastic: PBT , fiber-glass reinforced (halogen-free) |
LC-Duplex multimode adapter in acc. with IEC 61754-20. Flangeless body and integrated quick-mounting clip, color metallic, material X10CrNi18-8. Housing beige (multimode PC), material PBT / UL 94 V-0, zirconia (ceramic) alignment sleeve, integral self-closing metal laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the covers. The adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).
Optical specifications:
Mechanical specifications:
Optional:
Visual coding, mechanical coding and lock protection.
