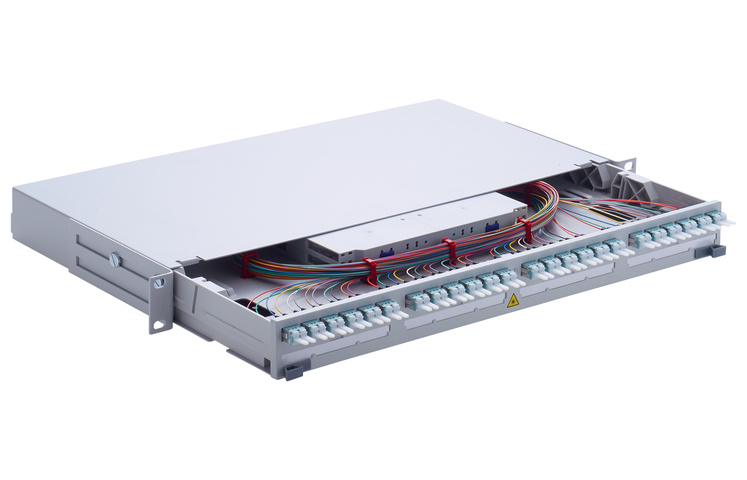

R&M, 19" 1U UniRack2 12xLC-Duplex OM3, PC, ceramic, Bm/3, R&MinteliPhy ready

Kód: R819034
  • speciální montážní držáky pro montáž snímače R&MinteliPhy
  • 19" 1U zasouvací jednotka, kazeta s 2 držáky s radiusem 40 mm, upevňovací materiál, popisovací pásky a instalační manuál
  • přední panel vybaven s adaptéry a pigtaily
Cena: dostupná po přihlášení
Dostupnost: Brno

Praha

na vyžádání
Množství:  ks

Speciální montážní držáky pro montáž snímače R&MinteliPhy.



Obsah balení:

  • 19" 1U zasouvací jednotka, kazeta s 2 držáky s radiusem 40 mm, upevňovací materiál, popisovací pásky a instalační manuál
  • přední panel vybaven s adaptéry a pigtaily



Standardy

  • IEC 60297-3: 19-palcový (482.6 mm) rack
  • Adaptér a konektor v souladu s IEC 61754-20
  • Pigtaily v souladu s barevným kódem DIN VDE 0888

Technická specifikace

R&M, Patch panely FO
Stupeň krytí IP 20
Počet konektorů 12
Osazení plně osazen
Šířka (palec) ["] 19
Rack montážní verze patch panel
Kapacita (portů) 24
Výška jednotky (U) [U] 1
Typ konektorů LC-Duplex
Zabroušení PC
Útlum IL Bm
Útlum odrazu RL 3
Barva konektorů tyrkysová
Materiál obalu keramický
Způsob upevnění adaptéru koncový uzávěr Snap-In
Typ vlákna multimode (MM)
Třída vlákna OM3
Typ drátu polotuhá ochrana, suchá
Průměr vlákna G50/125 µm
Barva box a přední díl, šedý (NCS 2502-B)
Rozměry 43.6 x 482.6 x 225 mm
Materiál box ocel: DC01 (1.0330), 1.0 mm, práškově lakovaný / přední část plast: PC, vyztužené skelným vláknem

Originální text

Special mounting brackets for mounting the R&MinteliPhy Sensorbar.





Scope of supply

  • 19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual
  • Front panel equipped with adapters and pigtails

Standards



  • IEC 60297-3: 19-inch (482.6 mm) rack
  • Adapter and connector in acc. with IEC 61754-20
  • Pigtails in acc. with color code DIN VDE 0888



General Data

Description [Unit] Value/Value range
Fastening (inch) ["] 19
Height units (U) [U] 1
Rack mounting version patch panel
Version splice
Capacity (ports) 24
Number of connectors (A) 12
Connector type (A) LC-Duplex
Protection class IP (A) IP 20
Polishing plug (A) PC
Attenuation grade IL (A) Bm
Return loss grade RL (A) 3
Connector color (A) turquoise
Sleeve material ceramic
Adapter fastening method end cap snap-in
Fiber class OM3
Wire type semi-tight buffer, dry
Fiber diameter G50 / 125 µm
Fiber type multimode (MM)
Color box and front, gray (NCS 2502-B)
Assembly partly populated
Dimensions 43.6 x 482.6 x 225 mm
Material box steel: DC01 (1.0330), 1.0 mm, powder-coated / front plastic: PC, fiber-glass reinforced



Splice and patch box, mounting depth 225 mm, continuously depth-adjustable up to 55 mm; rear cable feed, cable entry possible from three different angles. The box has two levels, the lower level serves as storage for spare loose tubes, tray fixation in the side structure is ensured; the upper level serves as storage for spare pigtails (1.3 m of fiber stored in the splice tray). Guaranteed bending radius ≥ 40 mm, fitted ready for splicing with pigtails and adapters, inserted and tested, two splice trays with radius 40 mm, box continuously extendable up to 210 mm, at full extension it can be inclined 10° forwards. Optimum access to loose tubes, adapters and pigtails, the tray can be fully detached from the box by release lever. Special mounting brackets for mounting the R&MinteliPhy Sensorbar. Includes indelible laser trademark, fastening material, labeling strips and installation instructions.

Features:

  • Dimensions: 43.6 x 482.6 x 225 mm
  • Material: box, powder-coated sheet steel / front panel, plastic PC, fiber-glass reinforced
  • Color: medium gray (NCS 2502-B, approximating RAL 7035)

Assembled with 12 x

LC-Duplex multimode adapter in acc. with IEC 61754-20. Flangeless body and integrated quick-mounting clip, color metallic, material X10CrNi18-8. Housing turquoise (multimode PC), material PBT / UL 94 V-0, zirconia (ceramic) alignment sleeve, integral self-closing metal laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the covers. The adapter qualified in acc. with IEC 61753-1 for category U (uncontrolled environment).

Optical specifications:

  • Delta insertion loss: ≤ 0.2 dB, testing method acc. to IEC 61300-3-4

Mechanical specifications:

  • Mating cycles: min. 500
  • Pull-out force: min. 70 N

Assembled with 24 x

Pigtail with semi-tight buffer PA/PBT, Ø 0.9 mm, color in acc. with color code DIN/VDE 0888, multimode G50 50/125 µm (OM3), length 2.5 m. Fitted with LC connector in acc. with IEC 61754-20. Zirconia (ceramic) ferrule with a PC polished endface geometry, connector qualified in acc. with IEC 61753-1 for category U (uncontrolled environment). Beige connector housing (multimode), material PEI / UL 94 V-0, black strain relief and white plastic dust cover.

Optical specifications (random mated):

Performance:

  • Insertion loss (IL) Grade Bm for 100% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.15 dB
  • Return loss (RL) Grade 3: ≥ 35 dB

Mechanical specifications:

  • Mating cycles: delta IL < 0.2 dB after 500 mating cycles
  • Pull-out force fiber pigtail: ≥ 5 N
