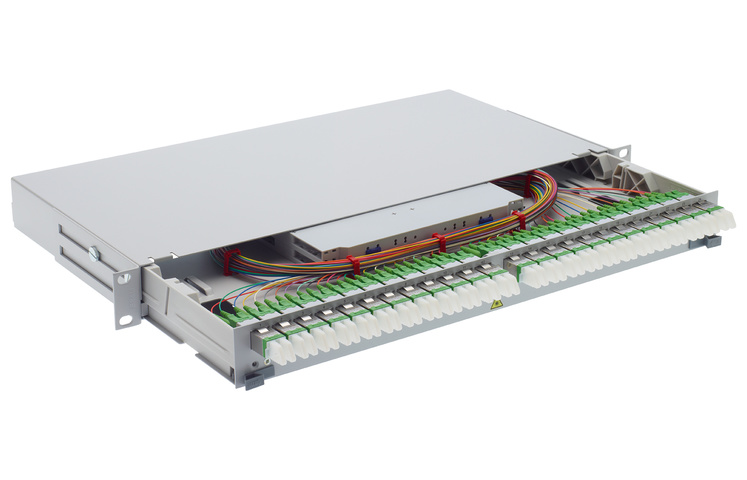

R&M, 19" 1U UniRack2 24xE-2000™-Compact G.652.D, APC, ceramic, B/1

Kód: R816045
  • 19" 1U zasouvací jednotka, kazeta s 2 držáky s radiusem 40 mm, upevňovací materiál, popisovací pásky a instalační manuál
  • přední panel vybaven s adaptéry a pigtaily
Cena: dostupná po přihlášení
Dostupnost: Brno

Praha

na vyžádání
Množství:  ks

Obsah balení:

  • 19" 1U zasouvací jednotka, kazeta s 2 držáky s radiusem 40 mm, upevňovací materiál, popisovací pásky a instalační manuál
  • přední panel vybaven s adaptéry a pigtaily



Standardy

  • IEC 60297-3: 19-palcový (482.6 mm) rack
  • Adaptér and konektor v souladu s IEC 61754-15 a EN 186270
  • Pigtaily v souladu s barevným kódem DIN VDE 0888

Technická specifikace

R&M, Patch panely FO
Stupeň krytí IP 20
Počet konektorů 24
Osazení částečně osazen
Šířka (palec) ["] 19
Rack montážní verze patch panel
Kapacita (portů) 24
Výška jednotky (U) [U] 1
Typ konektorů E-2000 Compact
Zabroušení APC 8°
Útlum IL B
Útlum odrazu RL 1
Barva konektorů zelená
Materiál obalu keramický
Páka / rámové kódování barva
Způsob upevnění adaptéru koncový uzávěr Snap-In
Typ vlákna singlemode (SM)
Třída vlákna G.652.D (OS1, OS2)
Typ drátu polotuhá ochrana, suchá
Průměr vlákna E9/125 µm
Barva rámečku zelená
Barva box a přední díl, šedý (NCS 2502-B)
Rozměry 43.6 x 482.6 x 225 mm
Materiál box ocel: DC01 (1.0330), 1.0 mm, práškově lakovaný / přední část ocel: DC01 (1.0330), 1.5 mm, práškově lakovaný

Originální text

Scope of supply

  • 19" 1U slide-in unit, splice tray plate with 2 splice trays radius 40 mm, fastening material, labeling strips and installation manual
  • Front panel equipped with adapters and pigtails

Standards



  • IEC 60297-3: 19-inch (482.6 mm) rack
  • Adapter and connector in acc. with IEC 61754-15 and EN 186270
  • Pigtails in acc. with color code DIN VDE 0888



General Data

Description [Unit] Value/Value range
Fastening (inch) ["] 19
Height units (U) [U] 1
Rack mounting version patch panel
Version splice
Capacity (ports) 24
Number of connectors (A) 24
Connector type (A) E-2000™-Compact
Protection class IP (A) IP 20
Polishing plug (A) APC 8°
Attenuation grade IL (A) B
Return loss grade RL (A) 1
Connector color (A) green
Lever- / frame-coding (A) Color
Color frame (A)

green

green

Sleeve material ceramic
Adapter fastening method end cap snap-in
Fiber class G.652.D (OS1, OS2)
Wire type semi-tight buffer, dry
Fiber diameter E9 / 125 µm
Fiber type singlemode (SM)
Color box and front, gray (NCS 2502-B)
Assembly fully populated
Dimensions 43.6 x 482.6 x 225 mm
Material box steel: DC01 (1.0330), 1.0 mm, powder-coated / front steel: DC01 (1.0330), 1.5 mm, powder-coated



Splice and patch box, mounting depth 225 mm, continuously depth-adjustable up to 55 mm; rear cable feed, cable entry possible from three different angles. The box has two levels, the lower level serves as storage for spare loose tubes, tray fixation in the side structure is ensured; the upper level serves as storage for spare pigtails (1.3 m of fiber stored in the splice tray). Guaranteed bending radius ≥ 40 mm, fitted ready for splicing with pigtails and adapters, inserted and tested, two or less splice trays with radius 40 mm, box continuously extendable up to 210 mm, at full extension it can be inclined 10° forwards. Optimum access to loose tubes, adapters and pigtails, the tray can be fully detached from the box by release lever. Includes indelible laser trademark, fastening material, labeling strips and installation instructions.



Fitted with 24 x E-2000™-Compact adapters (LSHRJ) singlemode in acc. with IEC 61754-15:2009 and EN 186270. Flangeless body and integral quick-mounting clip for screwless mounting. Zirconia (ceramic) alignment sleeve, metallic housing, material X10CrNi18-8, green inner housing (singlemode APC), green coding clips, material PBT / UL 94 V-0, integral self-closing metal laser protection flaps, semi-transparent plastic dust covers, allowing optical testing with test lasers without removing the covers. Adapter qualified in accordance with IEC 61753-1 for category U (uncontrolled environment).

Optical specifications:

  • Delta insertion loss: ≤ 0.1 dB, testing method acc. to IEC 61300-3-4

Mechanical specifications:

  • Mating cycles: min. 1000
  • Pull-out force: min. 70 N



and 48 x pigtails with semi-tight buffer PA/PBT, Ø 0.9 mm, color in acc. with color code DIN/VDE 0888, singlemode G652.D 9/125 µm (OS1, OS2), length 2.5 m. Fitted with E-2000™ (LSH) connector in acc. with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connector tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment) and category E (extreme environment). Green connector housing (singlemode) and green lever, material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.

Optical specifications (random mated):

Performance in acc. with IEC 61753-1 (Table A.12):

  • Insertion loss (IL) Grade B for 97% of the tested specimen: ≤ 0.25 dB / typical ≤ 0.12 dB
  • Return loss (RL) Grade 1: ≥ 65 dB (typical ≥ 85 dB)

Mechanical specifications:

  • Mating cycles: delta IL < 0.2 dB after 1000 mating cycles
  • Pull-out force fiber pigtail: ≥ 5 N



Features:

  • Dimensions: 43.6 (1U) x 482.6 (19") x 225 mm (H x W x D)
  • Material: front panel, splice and patch box made of powder-coated sheet steel, medium gray (NCS 2502-B, approximating RAL 7035)



Optionally:

  • Various cable entries
  • Various front cable managers
