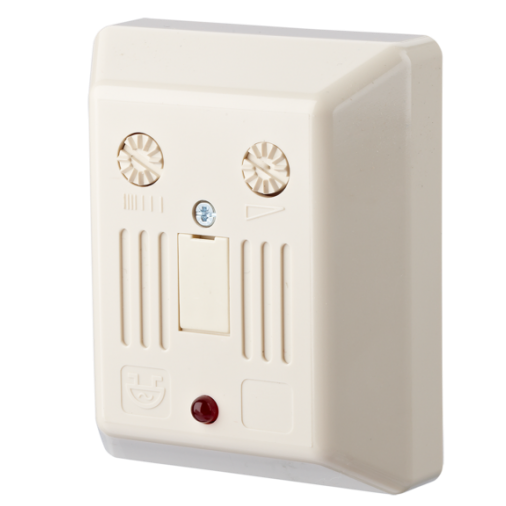

Metz, WK 955 AP secondary call signaler
| Kód: | 130592-I |
- The secondary call signaler allows additionally signalizing incoming calls by means of acoustic and optical signals
- An incoming call is signalized simultaneously by the telephone and the secondary call signaler
- The called persons are able to notice calls even if they are not close to the telephone
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The secondary call signaler allows additionally signalizing incoming calls by means of acoustic and optical signals
- An incoming call is signalized simultaneously by the telephone and the secondary call signaler
- The called persons are able to notice calls even if they are not close to the telephone
- Surface-mounted termination unit
- Adjustable sound intensity and clock frequency
- Three-sound call 95 dB
- Visual signal for incoming calls
- Audible signal can be deactivated if the telephone is plugged into a TAE jack
Technická specifikace
| Input / call voltage | 32 to 80 V AC |
| Input / frequency range | 23 to 54 Hz |
| Input / impedance | 10 kOhm at 75 V, 25 Hz |
| Input / insertion loss | less than 0.5 dB |
| Input / leakage resistance | more than 5 MOhm at 100 V |
| Output / internal | TAE-F jack |
| Dimensions (W x H x D) | 65 x 80 x 27 mm |
| Operating temperature range | -5 °C to + 55 °C |
| Storage temperature range | -20 °C to + 70 °C |
Originální text
The secondary call signaler allows additionally signalizing incoming calls by means of acoustic and optical signals. An incoming call is signalized simultaneously by the telephone and the secondary call signaler. The called persons are able to notice calls even if they are not close to the telephone.
- Surface-mounted termination unit
- Adjustable sound intensity and clock frequency
- Three-sound call 95 dB
- Visual signal for incoming calls
- Audible signal can be deactivated if the telephone is plugged into a TAE jack
