Operating voltage SAR4 |
230 V AC / 50 Hz |
Operating voltage SAR5 DC |
24 V DC / 10 mA |
Operating voltage SAR5 AC |
24 V AC / 10 mA |
Input / a/b telecommunications access line |
|
Input / call voltage |
32 to 80 V AC |
Input / frequency range |
23 to 54 Hz |
Input / impedance |
10 kOhm at 75 V, 25 Hz |
Input / insertion loss |
less than 0.5 dB |
Input / leakage resistance |
more than 5 MOhm at 100 V |
Input / a/c external voltage |
|
Input / control voltage DC |
5 to 40 V |
Input / control voltage AC |
5 to 40 V, 50 Hz |
Input / resistance |
approx. 6 kOhm |
Output / switching current |
max. 8 A |
Output / continuous current |
max. 6 A |
Output / switching voltage |
max. 250 V AC |
Output / switching capacity |
1500 VA (AC) |
|
240 W (less than 30 V DC) |
|
50 W (greater than 30 V DC) |
Call interval bridging |
0 to 12 s |
Limitation of power-on time |
0.25 to 12 s |
Electrical safety |
acc. to EN 60950 |
|
|

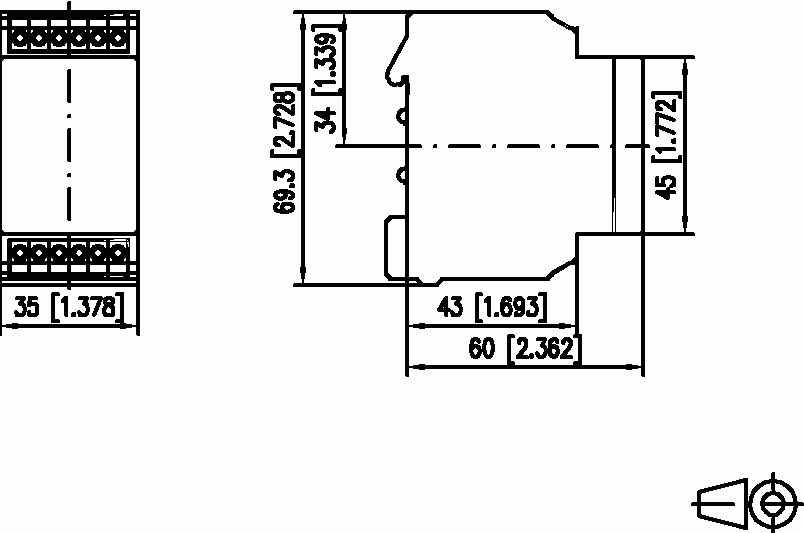

Dimensions (W x H x D) |
35 x 69.3 x 60 mm |
Operating temperature range |
-5 °C to + 55 °C |
Storage temperature range |
-20 °C to + 70 °C |
