Operating voltage | 24 V AC/DC |
Current consumption max. | less than or equal to 15 mA |
Continuous current max. | 8 A |

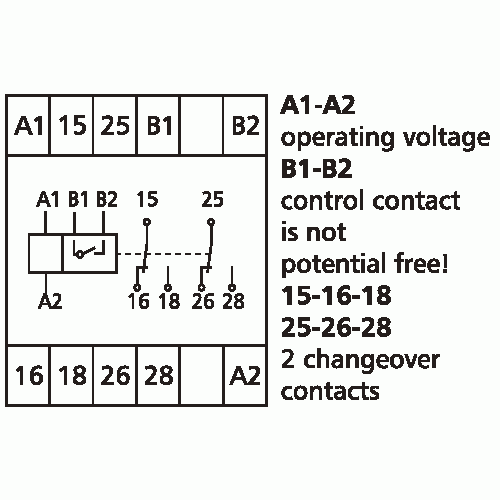

Output / contact | 2 changeover contacts (DPDT) |
Output / contact material | AgNi 90/10 gold plated |
Response time typical | 20 ms |
Release time typical | 20 ms |
Recovery time | greater than or equal to 20 ms |
Minimum switch-on duration | greater than or equal to 5 ms |
Mechanical endurance | 3 x 107 switching cycles |
Electrical endurance | 1 x 105 switching cycles |
Wire cross section solid wire | 2.5 mm² / AWG 14 |

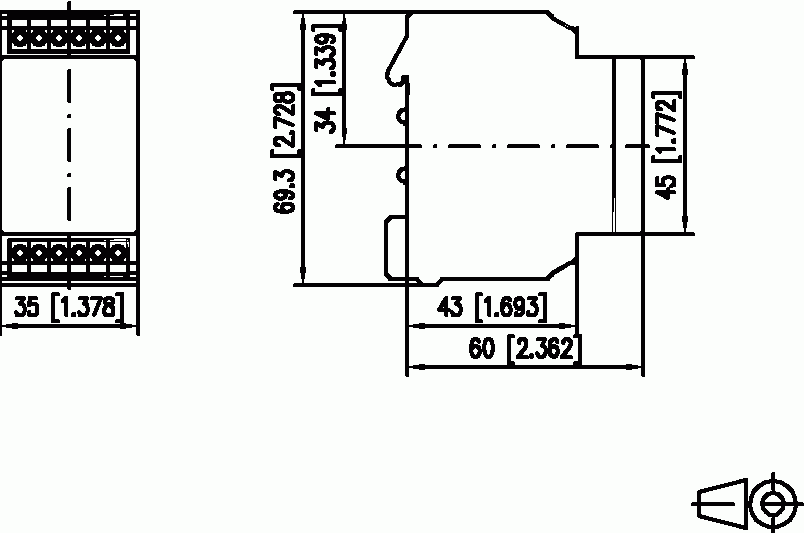

Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
Weight | 100 g |
Operating temperature range | -10 °C to +55 °C |
Storage temperature range | -25 °C to +70 °C |
Ingress protection for housing / terminal block | IP40 / IP20 |

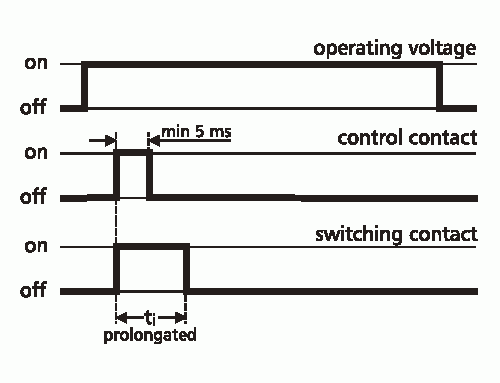

The timer relay is used for pulse prolongation. When the control contact is closed min. 5 ms, the relay is activated and releases after the adjusted pulse time has lapsed. Further control pulses during the pulse time do not have any effect.
