Kód: | 110629 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|
Cut-off voltage | 1000 V |
Input / voltage | 250 V AC/DC |
Forward current | 1 A |
Forward voltage | 1.1 V at 1 A |
Total current through all diodes | less than or equal to 3.2 A |
Cut-off current | 30 µA at 75 °C |

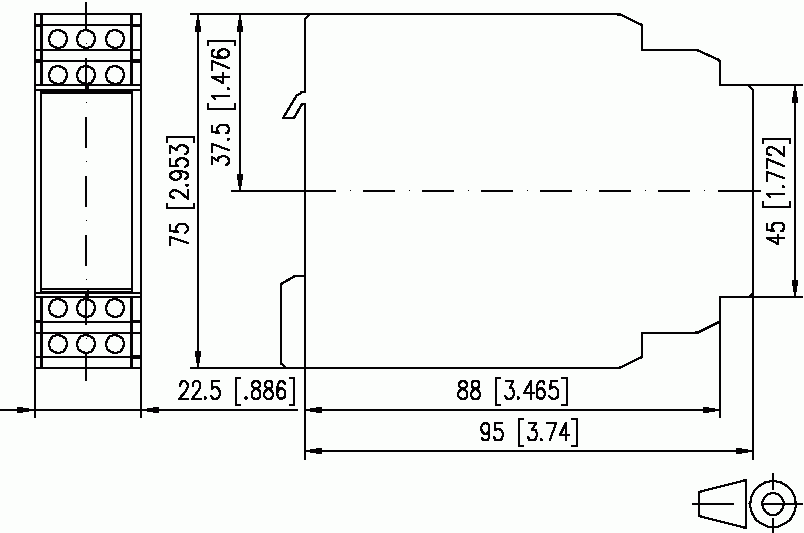

Dimensions (W x H x D) | 22.5 x 75 x 95 mm |
Weight | 20 g |
Operating temperature range | -10 °C to +50 °C |
Storage temperature range | -25 °C to +70 °C |
Ingress protection for housing / terminal block | IP40 / IP20 |

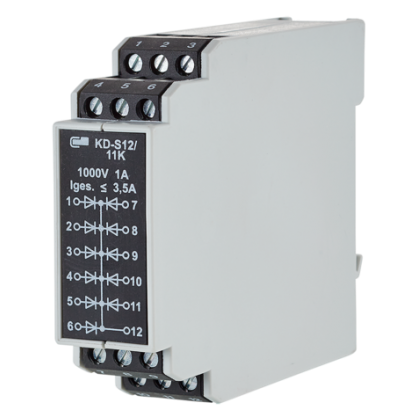

The diode module is equipped with 11 diodes. The cathodes of the diodes are all connected to each other. The module is used for failure indication systems (collective fault message).
