Metz, KAD-C12
| Kód: | 110656 |

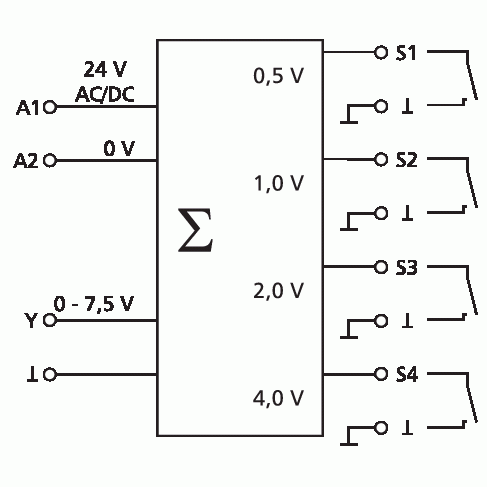

- The digital/analog converter is designed to convert contacts into an analog signal
- The inputs are scanned in steps of 0.5 V
- They can be connected to and scanned at a compact control with an analog input (0-10 V)
- The bridged inputs are signalized by means of LEDs

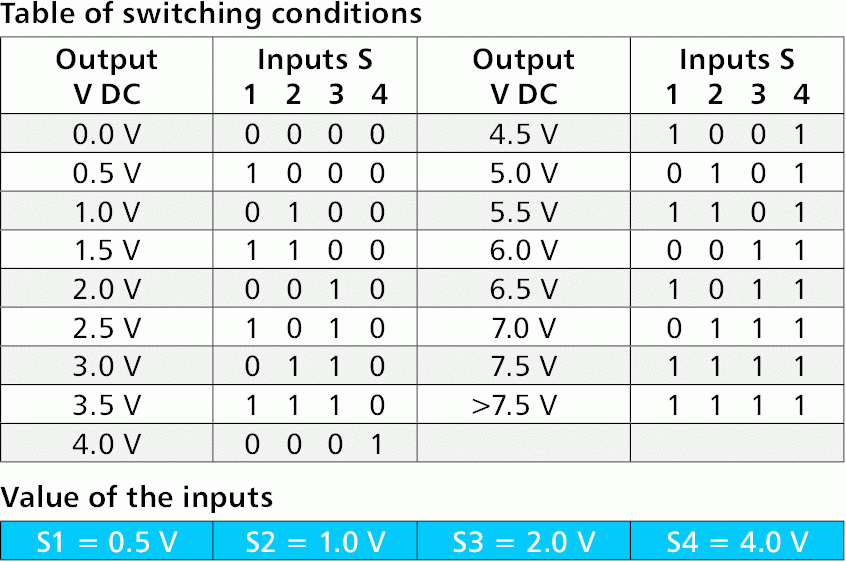

- Example: S1 and S4 bridged corresponds to an output voltage of 4.5 V
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The digital/analog converter is designed to convert contacts into an analog signal
- The inputs are scanned in steps of 0.5 V
- They can be connected to and scanned at a compact control with an analog input (0-10 V)
- The bridged inputs are signalized by means of LEDs
- Example: S1 and S4 bridged corresponds to an output voltage of 4.5 V
- Switching states are indicated by means of LEDs

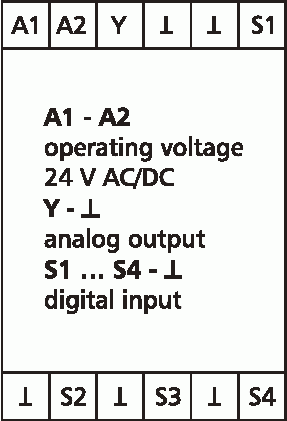

- Connection with screw-type terminals
Technická specifikace
| Operating voltage | 24 V AC/DC |
| Current consumption 24 V AC | 60 mA |
| Current consumption 24 V DC | 50 mA |
| Input / voltage | 0 to 10 V |
| Input / scanning | 0.5 V steps |
| Output / voltage | 0 V to 7.5 V DC |
| Display | Yellow LED |

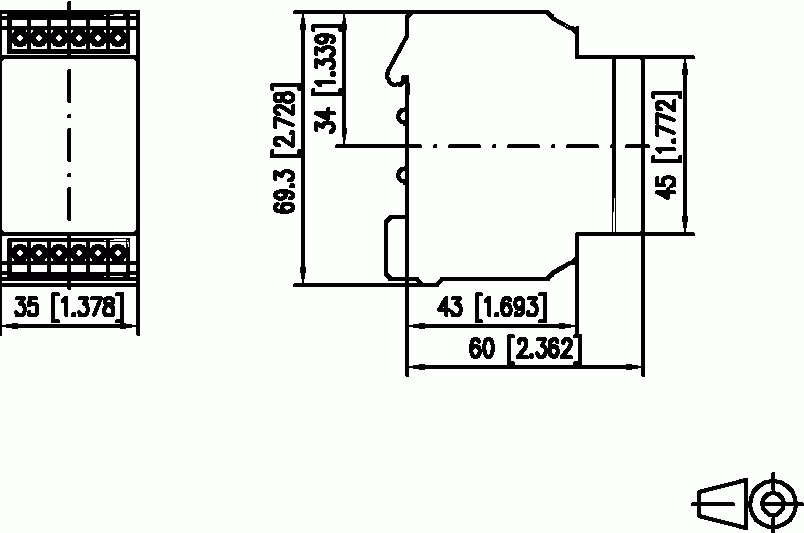

| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 30 g |
| Operating temperature range | -10 °C to +50 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
Originální text
The digital/analog converter is designed to convert contacts into an analog signal. The inputs are scanned in steps of 0.5 V. They can be connected to and scanned at a compact control with an analog input (0-10 V). The bridged inputs are signalized by means of LEDs. Example: S1 and S4 bridged corresponds to an output voltage of 4.5 V.
- Switching states are indicated by means of LEDs
- Connection with screw-type terminals
