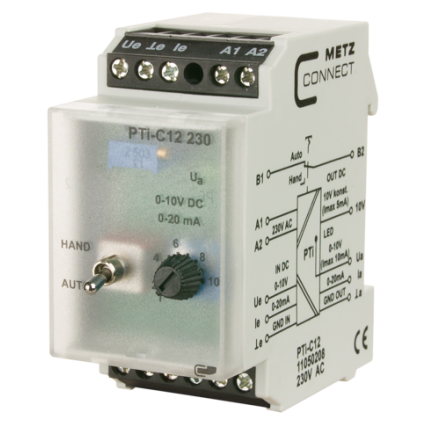

Metz, PTi-C12, 230 V AC
| Kód: | 11050208 |

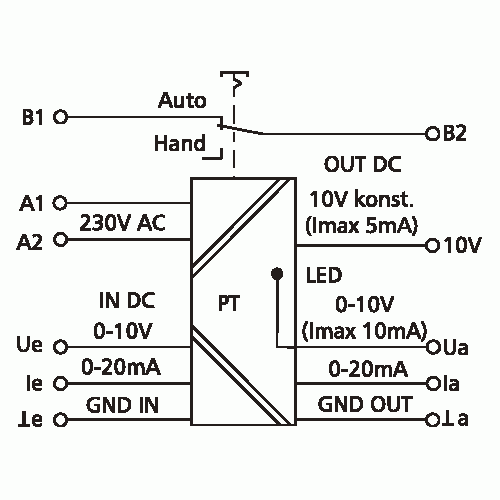

- The potential divider is used for dividing analog signals in a range from 0 to 10 V DC or 0 to 20 mA
- The input and output signals and the supply are mutually isolated
- An input signal (0 to 10 V DC or 0 to 20 mA) can be applied optionally to the potential divider
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The potential divider is used for dividing analog signals in a range from 0 to 10 V DC or 0 to 20 mA
- The input and output signals and the supply are mutually isolated
- An input signal (0 to 10 V DC or 0 to 20 mA) can be applied optionally to the potential divider
- Independently of the type of signal on the input, a voltage of 0 to 10 V DC or a current of 0 to 20 mA can be measured on the output proportionally to the input signal
- In addition, a manual emergency operation level with checkback is integrated
- A fix 10 V DC signal can be scanned for anti-frost or similar equipment
- If a voltage signal is used on input and output, use PT-C12,230
- If a current signal is used on input and output, use PTi-C12,230
Technická specifikace
| Operating voltage | 230 V AC |
| Test voltage / separation | 1000 V DC |
| Input / voltage | 0 V to 10 V DC |
| Input / current | 0 V to 20 mA DC |
| Output / fix voltage | 10 V DC / 5 mA, fix |
| Output / proportional voltage | 0 to 10 V / max. 10 mA |
| Output / proportional current | 0 to 20 mA |
| Output / current load | max. 500 Ohm |
| Display | Green LED |

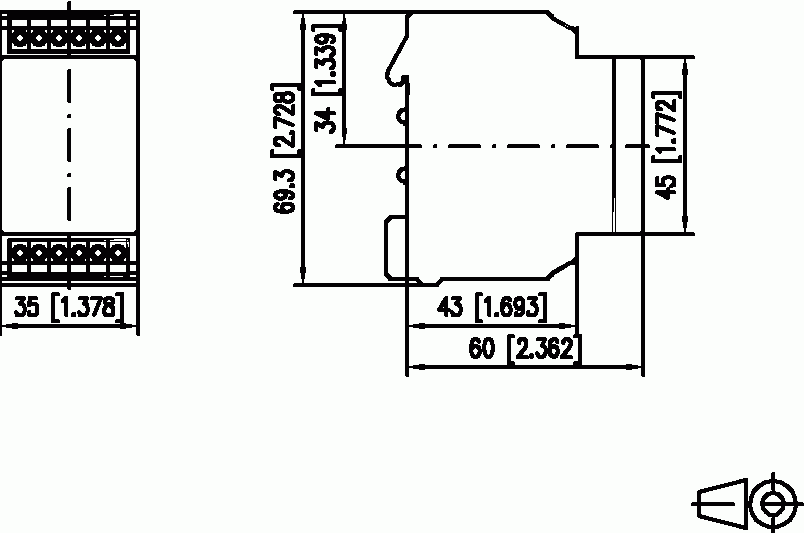

| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 78 g |
| Operating temperature range | 0 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
Originální text
The potential divider is used for dividing analog signals in a range from 0 to 10 V DC or 0 to 20 mA. The input and output signals and the supply are mutually isolated. An input signal (0 to 10 V DC or 0 to 20 mA) can be applied optionally to the potential divider. Independently of the type of signal on the input, a voltage of 0 to 10 V DC or a current of 0 to 20 mA can be measured on the output proportionally to the input signal. In addition, a manual emergency operation level with checkback is integrated. A fix 10 V DC signal can be scanned for anti-frost or similar equipment. If a voltage signal is used on input and output, use PT-C12,230. If a current signal is used on input and output, use PTi-C12,230.
