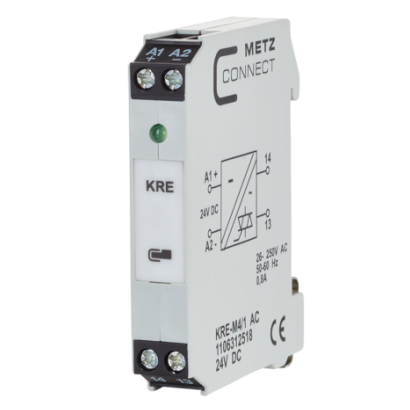

Metz, KRE-M4/1 AC
| Kód: | 1106312518 |

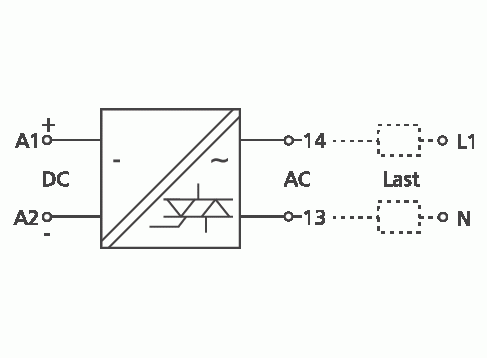

Triac couplers are used for switching AC loads.
- Connection with screw-type terminals
- Zero point switch
- RC element
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
Triac couplers are used for switching AC loads.
- Connection with screw-type terminals
- Zero point switch
- RC element
Technická specifikace
| Input / operating voltage | 24 V DC |
| Input / power consumption | 10 mA |
| Output / switching voltage | 26 to 250 V AC |
| Output / continuous current | 0.8 A |
| Output / current pulse | 2 A / 1 s |
| Cross-section | 2.5 mm² |
| Display | Green LED |

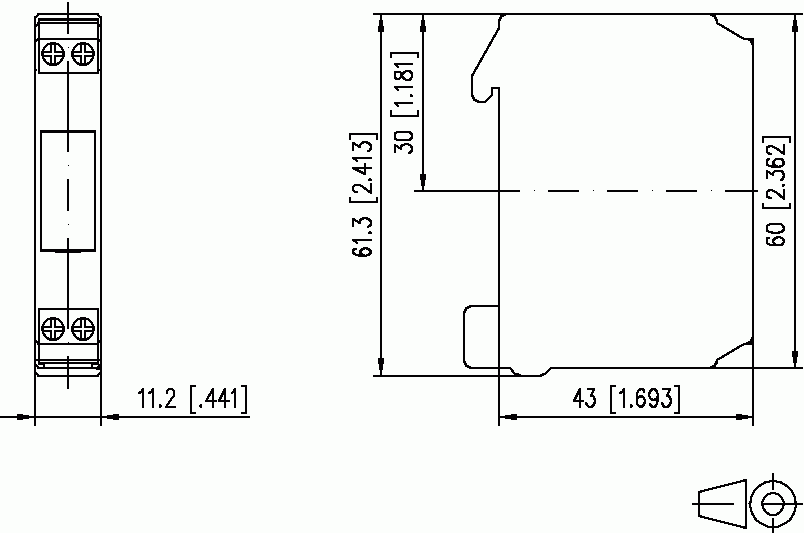

| Dimensions (W x H x D) | 11.2 x 61.3 x 43 mm |
| Weight | 35 g |
| Operating temperature range | 0 °C to +50 °C |
| Storage temperature range | -10 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
