Kód: | 1106302517 |
Transistor couplers are used for switching DC loads.
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|
Transistor couplers are used for switching DC loads.
Input / operating voltage | 24 V DC |
Input / power consumption | 10 mA |
Output / switching voltage | 4 to 48 V DC |
Output / continuous current | 0.8 A |
Output / current pulse | 2 A / 1 s |
Cross-section | 2.5 mm |
Display | Green LED |

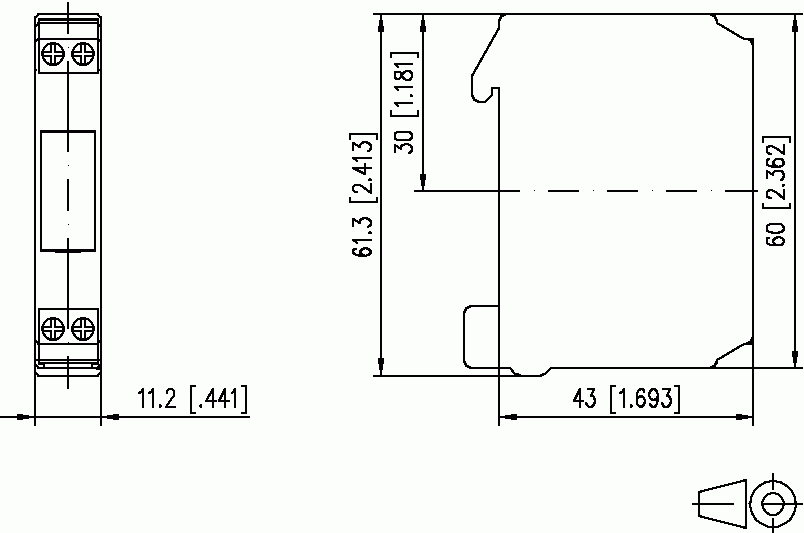

Dimensions (W x H x D) | 11.2 x 61.3 x 43 mm |
Weight | 35 g |
Operating temperature range | 0 °C to +50 °C |
Storage temperature range | -10 °C to +70 °C |
Ingress protection for housing / terminal block | IP40 / IP20 |
