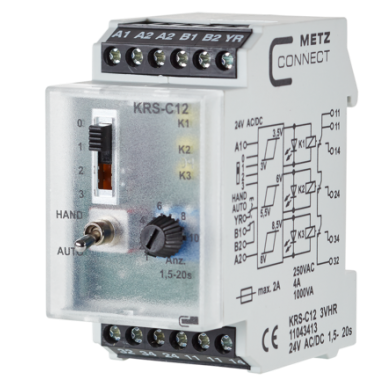

Metz, KRS-C12 3VHR
| Kód: | 11043413 |

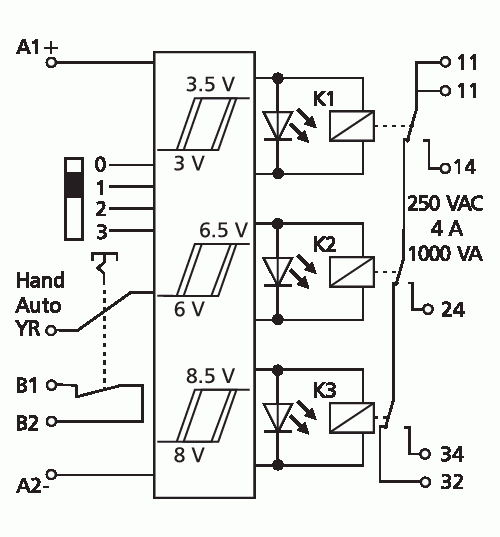

- The threshold gate was developed for three-level motor control
- Three LEDs are integrated in the module for visually checking the switching state
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The threshold gate was developed for three-level motor control
- Three LEDs are integrated in the module for visually checking the switching state

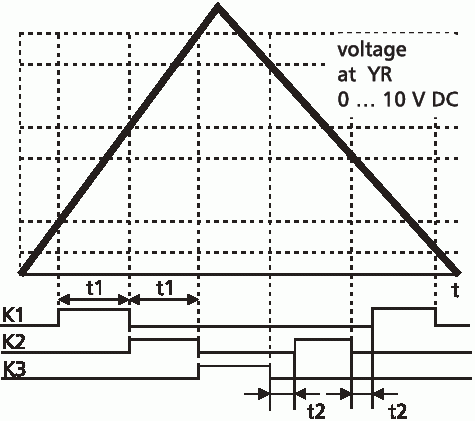

- Activation by just one analog input
- Manual control level with checkback
- Integrated timer relay
- 3 changeover contacts (3PDT) with automatic locking

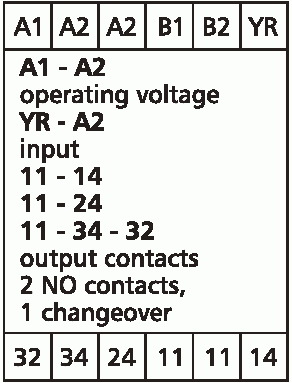

- Connection with screw-type terminals
Technická specifikace
| Operating voltage | 24 V AC/DC |
| Current consumption 24 V AC | 60 mA |
| Current consumption 24 V DC | 22 mA |
| Output / voltage | 250 V AC |
| Output / contact | 3 changeover contacts (3PDT) |
| Output / contact material | AgNi |
| Output / continuous current | 4 A |
| Output / switching frequency | 360 cycles/h |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Display | Yellow LED |

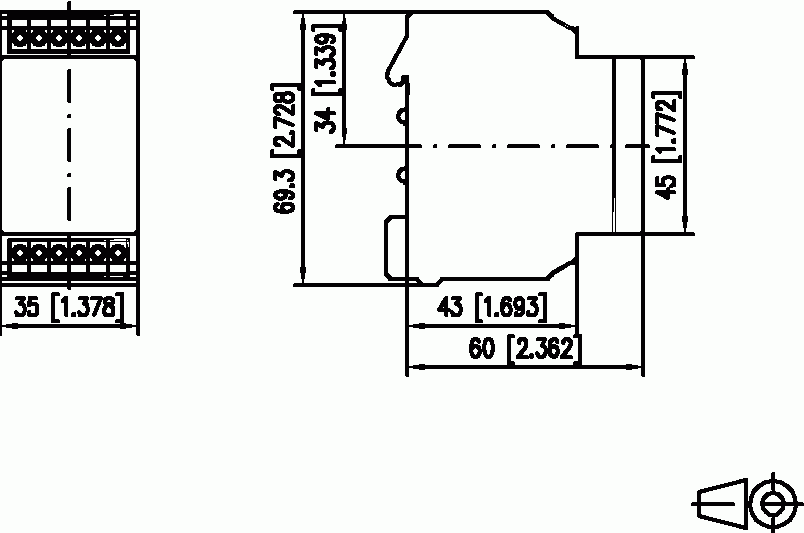

| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 95 g |
| Operating temperature range | -10 °C to +50 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
