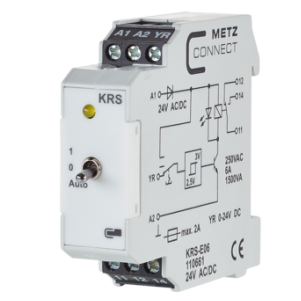

Metz, KRS-E06 H
| Kód: | 110661 |

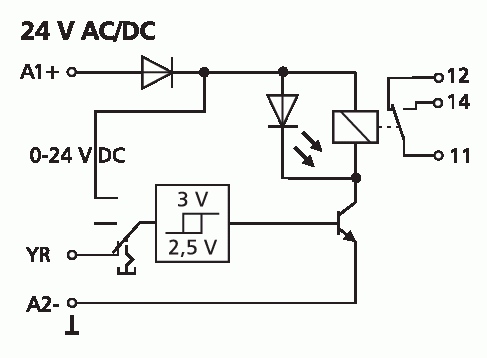

- The threshold gate switches units, pumps, fans, burners, etc.
- As soon as the input voltage reaches the switching threshold, the relay is activated
- When the input voltage falls below the switch-off threshold, the relay is released again
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The threshold gate switches units, pumps, fans, burners, etc.
- As soon as the input voltage reaches the switching threshold, the relay is activated
- When the input voltage falls below the switch-off threshold, the relay is released again

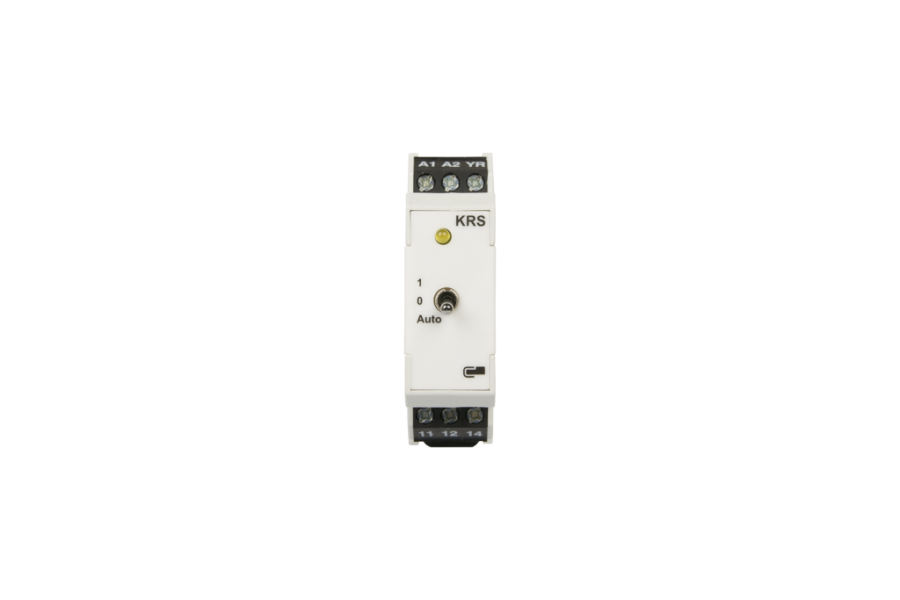

- With manual control level

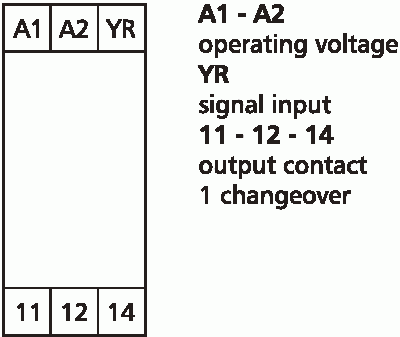

- Connection with screw-type terminals
Technická specifikace
| Operating voltage | 24 V AC/DC |
| Current consumption 24 V AC | 80 mA |
| Current consumption 24 V DC | 16 mA |
| Threshold voltage | 3.0 V DC |
| Switch-off voltage | 2.5 V DC |
| Output / voltage | 250 V AC |
| Output / contact | 1 changeover contact (SPDT) |
| Output / contact material | AgNi |
| Output / continuous current | 6 A |
| Output / switching frequency | 1200 cycles/h |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Display | Yellow LED |

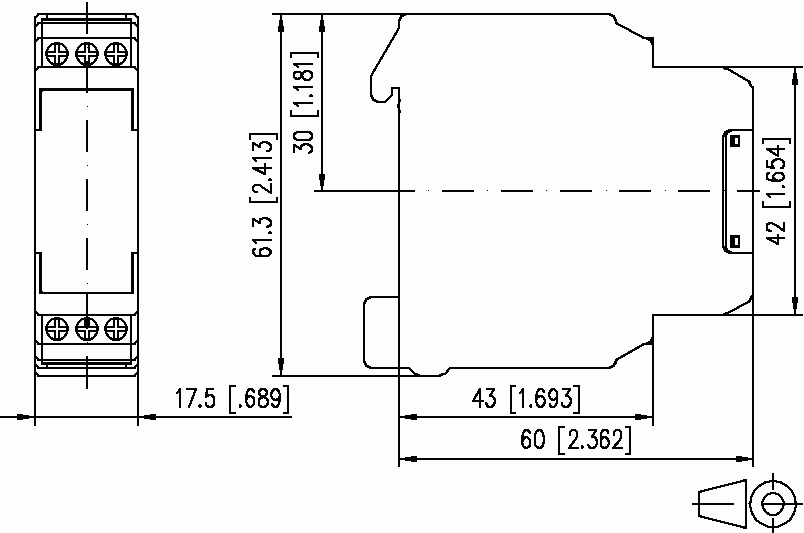

| Dimensions (W x H x D) | 17.5 x 61.3 x 60 mm |
| Weight | 70 g |
| Operating temperature range | -10 °C to +50 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
