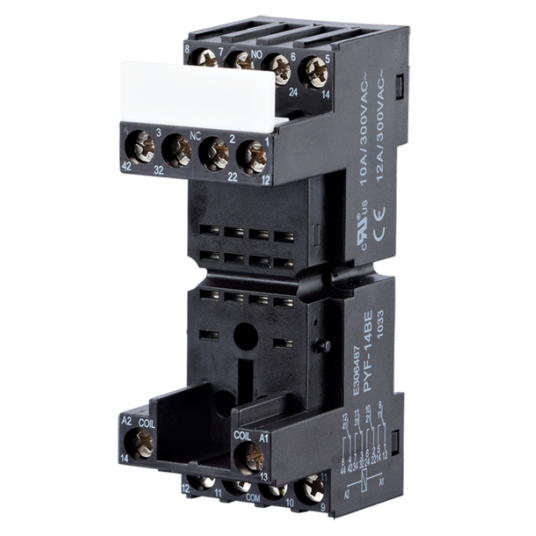

Metz, Socket 14 poles for electronic modules
| Kód: | 110178 |
- 14-pole relay socket for commercially available industrial relays with screw-type terminals
- All metal parts are arranged under cover to protect them against contact
- The relay socket matches R274
- Electronic modules, such as LED or RC modules, can be plugged in the socket optionally
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- 14-pole relay socket for commercially available industrial relays with screw-type terminals
- All metal parts are arranged under cover to protect them against contact
- The relay socket matches R274
- Electronic modules, such as LED or RC modules, can be plugged in the socket optionally
- Optional bracket
- Integrated quick fastening for DIN rail
- Terminal designation to EN 50022
- Separate input and output
Technická specifikace
| Nominal current | 10 A |
| Nominal voltage | 300 V AC |
| Electric strength | |
| Coil / contact | 4000 V / 50 Hz / 1min |
| Isolation group | VDE 0110b C250 |
| Ambient temperature | +70° C |
| Protection against contact | VBG 4 |
| Solid wire cross-section | 2 x 2.5 mm2 |
| Stranded wire with end sleeve | 2 x 1.5 mm2 |
| Screw torque | max. 0.8 Nm |
| Housing dimensions (W x H x D) | 27.2 x 75 x 61.2 mm |
| Weight | 56 g |
| Operating temperature range | 0 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection | IP20 |
