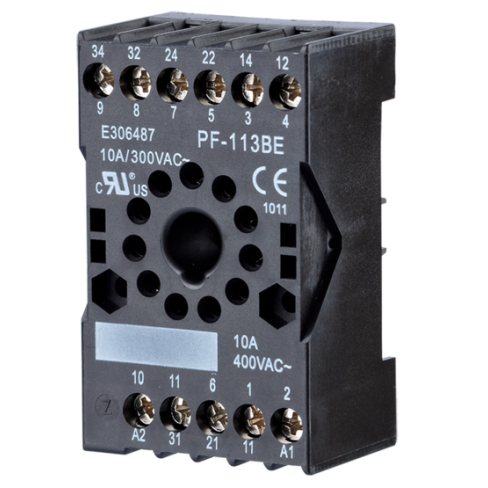

Metz, Socket 11 poles
| Kód: | 110117 |
- 11-pole relay socket for commercially available industrial relays with screw-type terminals
- All metal parts are arranged under cover to protect them against contact
- The relay socket matches HF10FH(JQX-10FH)
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- 11-pole relay socket for commercially available industrial relays with screw-type terminals
- All metal parts are arranged under cover to protect them against contact
- The relay socket matches HF10FH(JQX-10FH)
- Undecal plug-in socket
- Integrated quick fastening for DIN rail
- Cadmium-free contacts
Technická specifikace
| Application class | HMF to DIN 40040 |
| -25 °C / +100 °C / | |
| Ambient temperature | +80 °C |
| Protection against contact | VBG 4 |
| Cross-section | 2 x 2.5 mm² |
| Ampacity | 10 A |
| Operating voltage | 300 V AC |
| Isolation group | C 250 to VDE 0110 |
| Test voltage | 3.5 kV eff. / 60 s |
| Leakage resistance | >1010 |
| Creepage distance | 4 mm to VDE 0110 |
| Air gap | 2.5 mm to VDE 0110 |
| Creep resistance | CTI 300 |
| Housing dimensions (W x H x D) | 38.2 x 61.6 x 26 mm |
| Weight | 55 g |
| Operating temperature range | 0 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
