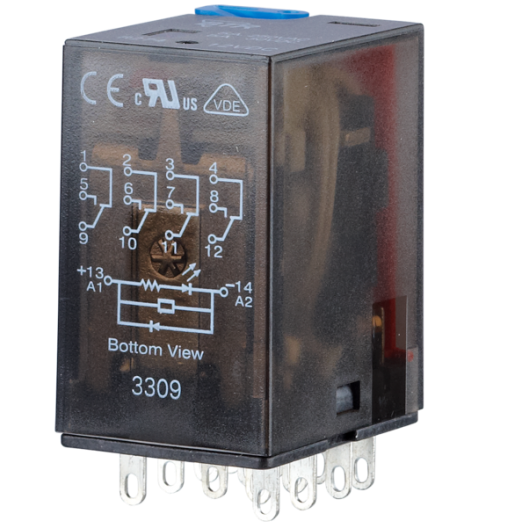

Metz, R274, 4 changeover contacts (2 DPST), 12 V DC
| Kód: | 110015271406 |
- Compact, pluggable relay for industrial use
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Compact, pluggable relay for industrial use
- Socket pins as soldering lugs
- Mechanical switch position display
- With manual test button
- Cadmium-free contacts
Technická specifikace
| Operating voltage AC | 24 V AC, 230 V AC |
| Operating voltage DC | 12 V DC, 24 V DC |
| Current consumption 12 V DC | 75 mA |
| Current consumption 24 V AC | 64 mA |
| Current consumption 24 V DC | 44 mA |
| Current consumption 230 V AC | 7 mA |
| Continuous current | 5 A |

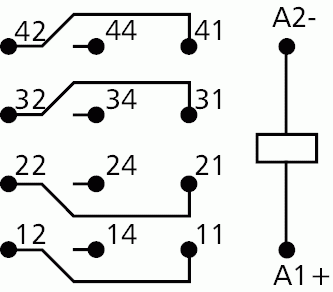

| Output / contact | 4 changeover contacts (4PDT) |
| Output / contact material | Silver alloy |
| Output / switching capacity | 1100 VA / 150 W |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Display | LED and mechanical |
| Dimensions (W x H x D) | 21.5 x 35 x 28 mm |
| Weight | 37 g |
| Operating temperature range | 0 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
