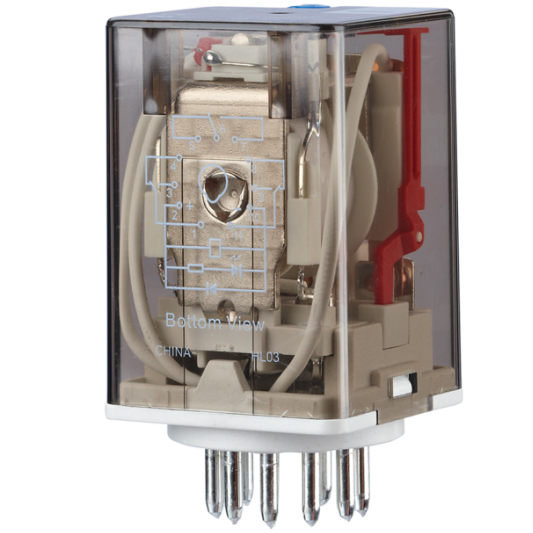

Metz, HF10FH, 3 changeover contacts (3 DPST), 24 V DC
| Kód: | 110016251307 |
- Sturdy power relay for industrial use
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Sturdy power relay for industrial use
- Internationally standardized 11-pole plug-in socket
- Insulated parts made from self-extinguishing plastics
- With manual test button
Technická specifikace
| Operating voltage | 24 V AC, 24 V DC, 230 V AC |
| Current consumption 24 V AC | 145 mA |
| Current consumption 24 V DC | 65 mA |
| Current consumption 230 V AC | 12 mA |
| Continuous current | 10 A |
| Output / contact | 3 changeover contacts (3PDT) |
| Output / contact material | AgSnO2 |
| Output / switching capacity | 2500 VA / 300 W |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Display | Red LED and mechanical |

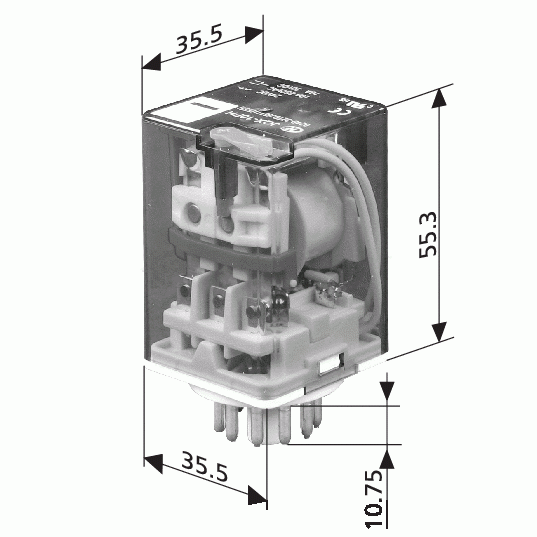

| Dimensions (W x H x D) | 35.5 x 55.3 x 35.5 mm |
| Weight | 85 g |
| Operating temperature range | -40 °C to +55 °C |
| Storage temperature range | -40 °C to +70 °C |
