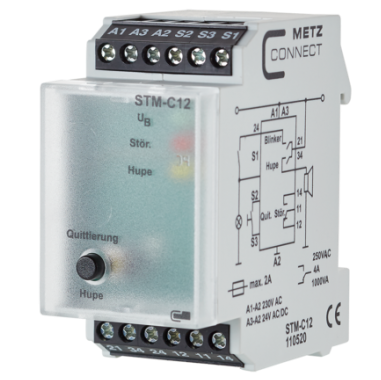

Metz, STM-C12
| Kód: | 110520 |

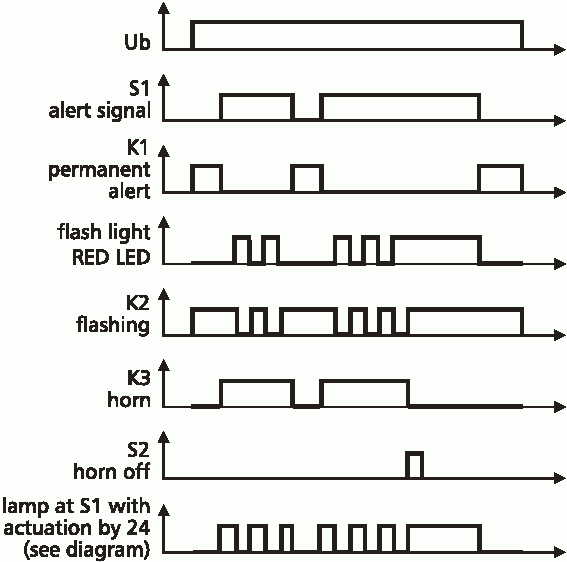

- When a fault message is applied, an alarm signal, a flashing signal and a horn relay are activated
- The horn relay can be switched off by means of the incorporated pushbutton or an externally applied signal
- An active alarm signal is shown as long as it is applied
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|

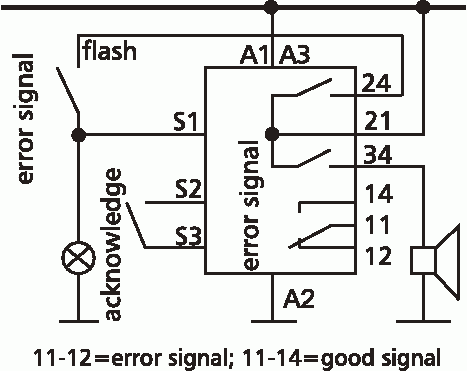

- When a fault message is applied, an alarm signal, a flashing signal and a horn relay are activated
- The horn relay can be switched off by means of the incorporated pushbutton or an externally applied signal
- An active alarm signal is shown as long as it is applied
- Acknowledgeable horn output
- Connection with screw-type terminals
Technická specifikace
| Operating voltage | 24 V AC/DC, 230 V AC/DC |
| Current consumption | less than 60 mA |
| Output / contact | 3 relay outputs |
| Output / contact material | AgNi |
| Output / switching voltage | 250 V |
| Output / continuous current | 4 A |
| Output / switching frequency | 360 cycles/h |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Cross-section | 2.5 mm2 |
| Display | Yellow LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 70 g |
| Operating temperature range | 0 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
