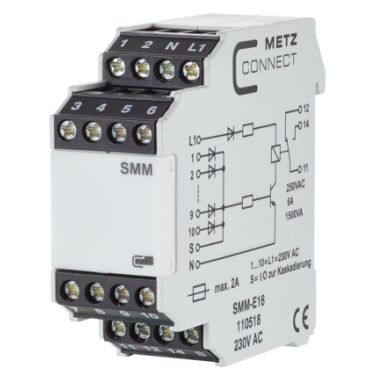

Metz, SMM-E16, 230 V AC
| Kód: | 110518 |

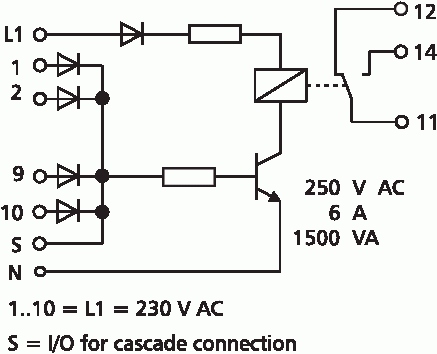

- The annunciator module can indicate to 10 incoming messages by means of a relay
- The relay is activated as soon as a voltage is applied to min. one of the 10 inputs
- The supply voltage has to be applied continuously to the terminals L1 - N
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The annunciator module can indicate to 10 incoming messages by means of a relay
- The relay is activated as soon as a voltage is applied to min. one of the 10 inputs
- The supply voltage has to be applied continuously to the terminals L1 - N

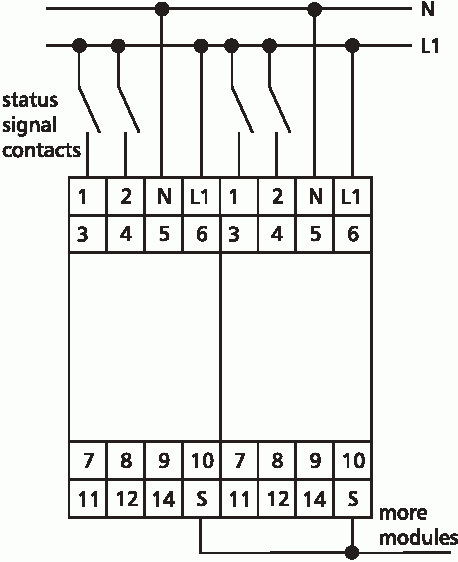

- Several modules with the same voltage can be grouped over the input/output "S"
- As soon as one relay of the modules is activated, all other relays of the modules operated in parallel are activated
- Cascade connection of the devices possible
- 10 signal inputs
- Connection with screw-type terminals
Technická specifikace
| Operating voltage | 24 V AC/DC, 230 V AC/DC |
| Power consumption: 24 V AC/DC | 20 mA |
| Power consumption: 230 V AC/DC | 20 mA |
| Output / contact | 1 changeover contact (SPDT) |
| Output / contact material | AgNi |
| Output / switching voltage | 250 V |
| Output / continuous current | 4 A |
| Output / switching frequency | 1200 cycles/h |
| Response time | 10 ms |
| Release time | 5 ms |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Cross-section | 2.5 mm2 |

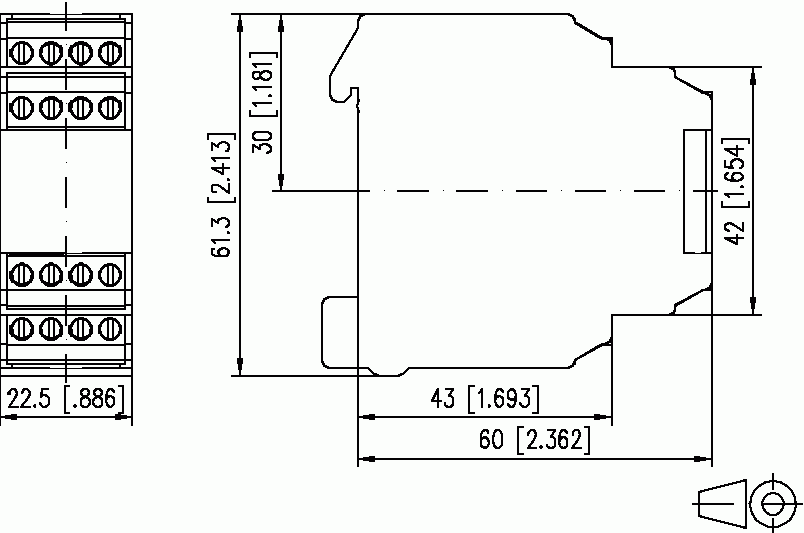

| Dimensions (W x H x D) | 22.5 x 61.3 x 60 mm |
| Weight | 70 g |
| Operating temperature range | -10 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
