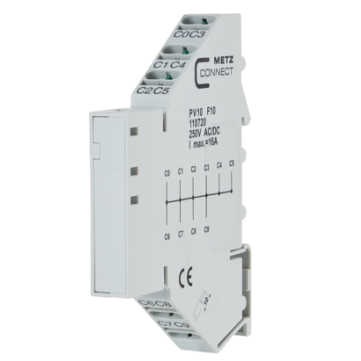

Metz, PV10 F10
| Kód: | 110720 |

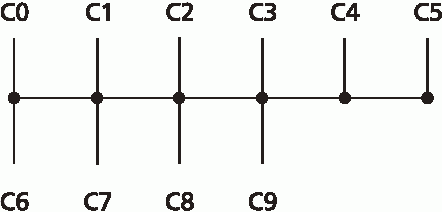

- The potential distributor distributes the potential of up to 10 lines on the top hat rail
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The potential distributor distributes the potential of up to 10 lines on the top hat rail
- Potential distributor
- Connection with spring-clamp terminal blocks (push-in)
- Test contacts for each terminal block
Technická specifikace
| Operating voltage | 250 V AC/DC |
| Total current | 16 A AC/DC |
| Current per contact | max. 10 A AC/DC |
| Solid wire cross-section | 0.08 mm2 - 2.5 mm2 |
| Stranded wire without end sleeve | 0.08 mm2 - 2.5 mm2 |
| Stranded wire with end sleeve | 0.08 mm2 - 1.5 mm2 |

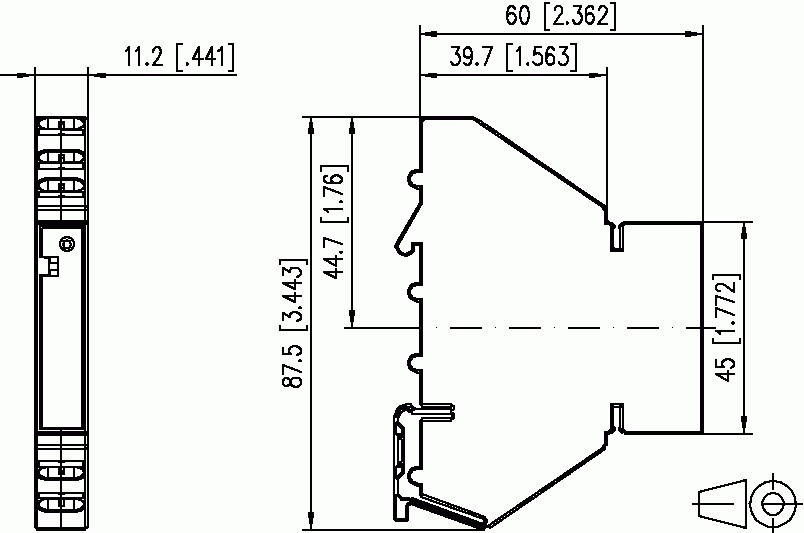

| Dimensions (W x H x D) | 11.2 x 87.5 x 60 mm |
| Weight | 30 g |
| Operating temperature range | -20 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
| Type of protection | IP20 |
