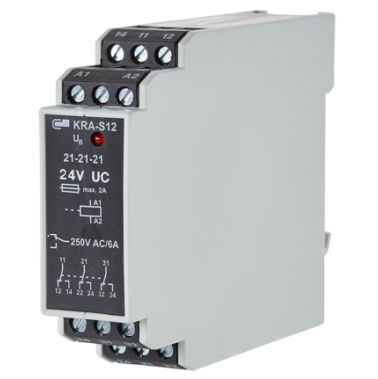

Metz, KRA-S12/21-21-21, 3 changeover contacts, 24 V AC/DC
| Kód: | 11060913 |
- Coupling devices are used to electrical isolation between logic and load
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Coupling devices are used to electrical isolation between logic and load
- Connection with screw-type terminals
Technická specifikace
| Operating voltage (AC/DC) | 24 V AC/DC |
| Power consumption: 24 V AC/DC | 50 mA |

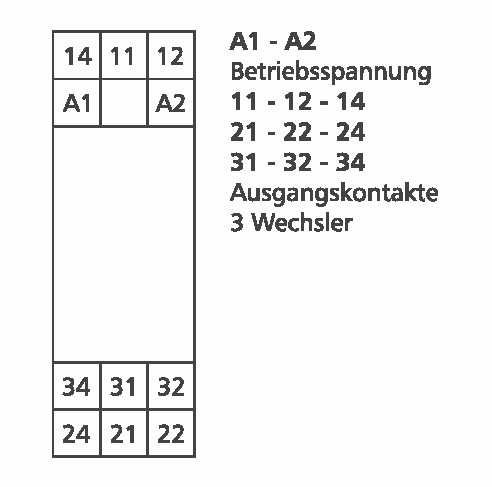

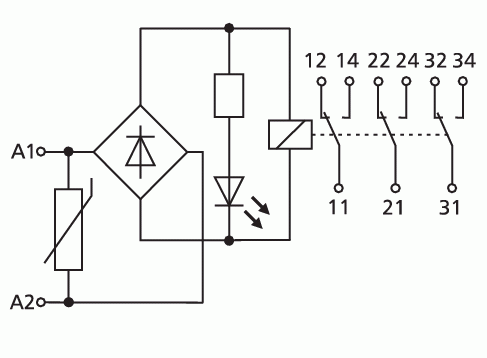

| Output / contacts | 3 changeover contacts (3PDT) |
| Output / contact material | AgNi |
| Output / switching voltage | 250 V AC/DC |
| Output / continuous current | 6 A |
| Output / switch-on current | 8 A |
| Output / switching frequency | 360 cycles/h |
| Response time | 10 ms |
| Release time | 5 ms |
| Mechanical endurance | 2 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Cross-section | 2.5 mm2 |
| Display | Red LED |

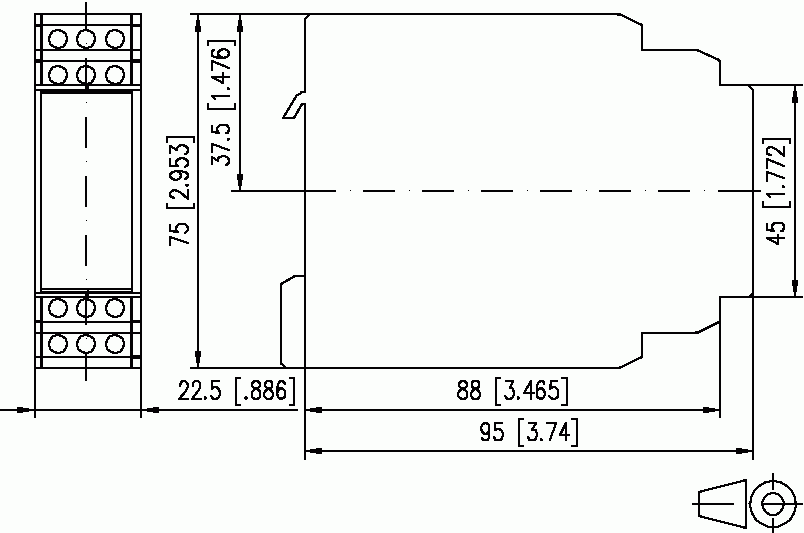

| Dimensions (W x H x D) | 22.5 x 75 x 95 mm |
| Weight | 140 g |
| Operating temperature range | -20 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
