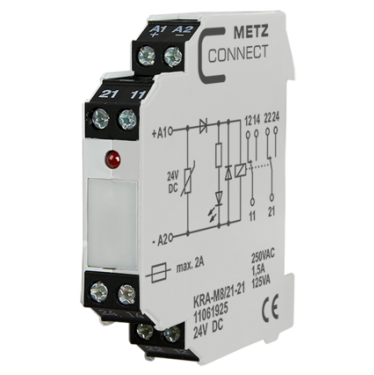

Metz, KRA-M8/21-21, 2 changeover contacts, 24 V DC
| Kód: | 11061925 |
- Coupling devices are used to electrical isolation between logic and load
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Coupling devices are used to electrical isolation between logic and load
- Connection with screw-type terminals
- Closed compact series

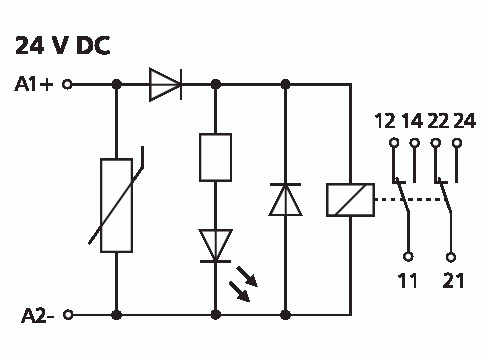

- Integrated protective circuit
Technická specifikace
| Operating voltage | 24 V DC |
| Current consumption | 17 mA |

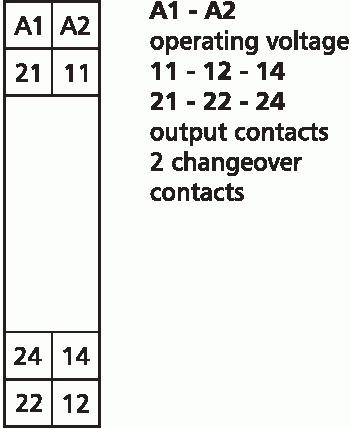

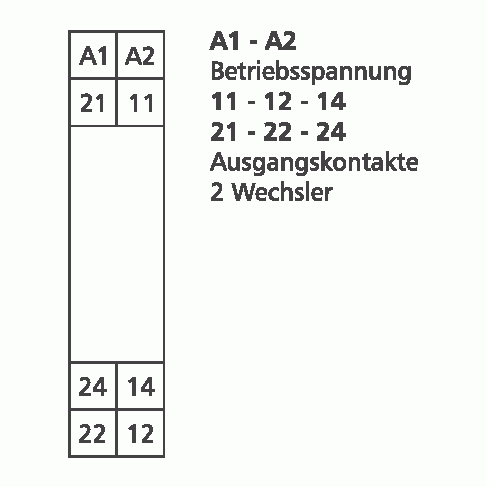

| Output / contacts | 2 changeover contacts (DPDT) |
| Output / contact material | AgPd + 5 µ Au |
| Output / switching voltage | 250 V AC/DC |
| Output / continuous current | 1,5 A |
| Output / switch-on current | 2 A |
| Output / switching frequency | 360 cycles/h |
| Response time | 10 ms |
| Release time AC | 15 ms |
| Release time DC | 5 ms |
| Mechanical endurance | 2 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Cross-section | 2.5 mm2 |
| Display | Red LED |

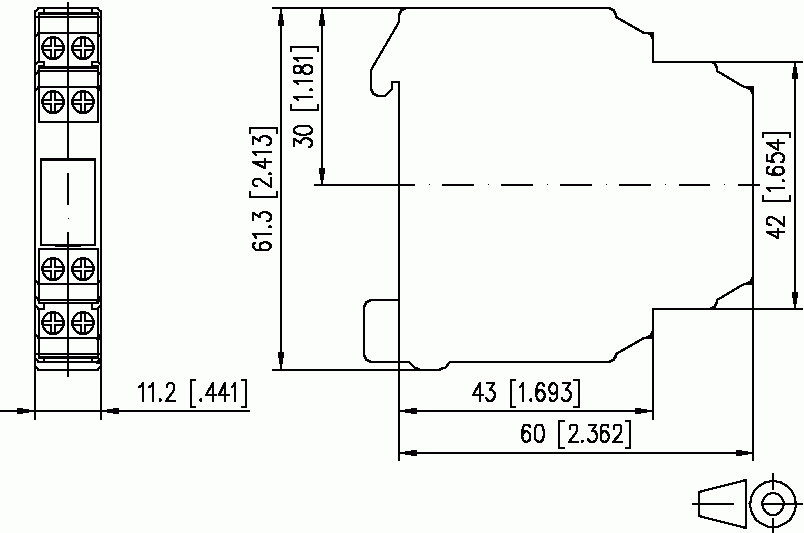

| Dimensions (W x H x D) | 11.2 x 61.3 x 60 mm |
| Weight | 45 g |
| Operating temperature range | -20 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
