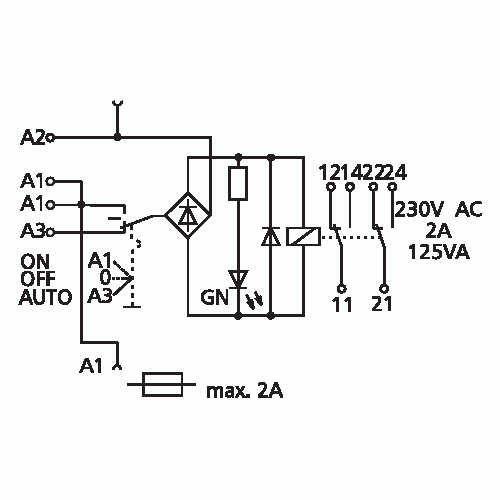

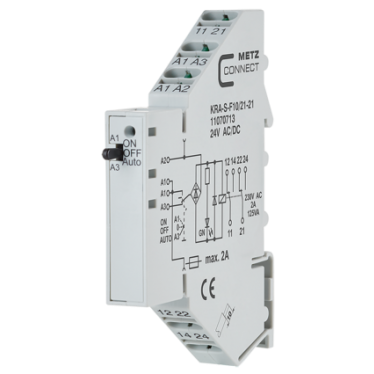

Metz, KRA-S-F10/21-21, 2 changeover contact (DPST), 24 V AC/DC
| Kód: | 11070713 |
- Coupling devices are used to electrical isolation between logic and load
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Coupling devices are used to electrical isolation between logic and load
- Connection with spring-clamp terminal
- Additional terminals for jumper
- Test contacts for each terminal
- with manual control level
Technická specifikace
| Operating voltage (AC/DC) | 24 V AC/DC |
| Power consumption: 24 V AC/DC | approx. 13 mA |

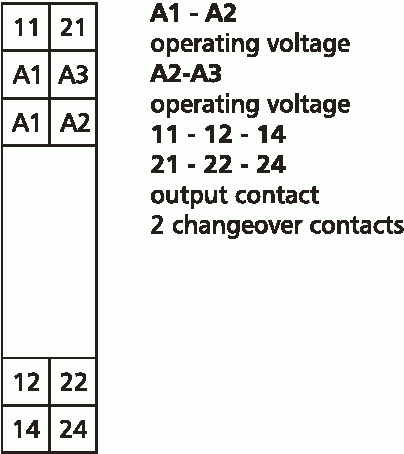

| Output / contacts | 2 changeover contacts (DPDT) |
| Output / contact material | AgPdAu |
| Output / switching voltage | 250 V AC/DC |
| Output / continuous current | 2 A |
| Output / switching frequency | 300 cycles/h |
| Response time | approx. 10 ms |
| Release time | approx. 5 ms |
| Mechanical endurance | 2 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Solid wire cross-section | 0.08 mm2 - 2.5 mm2 |
| Stranded wire without end sleeve | 0.08 mm2 - 2.5 mm2 |
| Stranded wire with end sleeve | 0.08 mm2 - 1.5 mm2 |
| Display | Green LED |

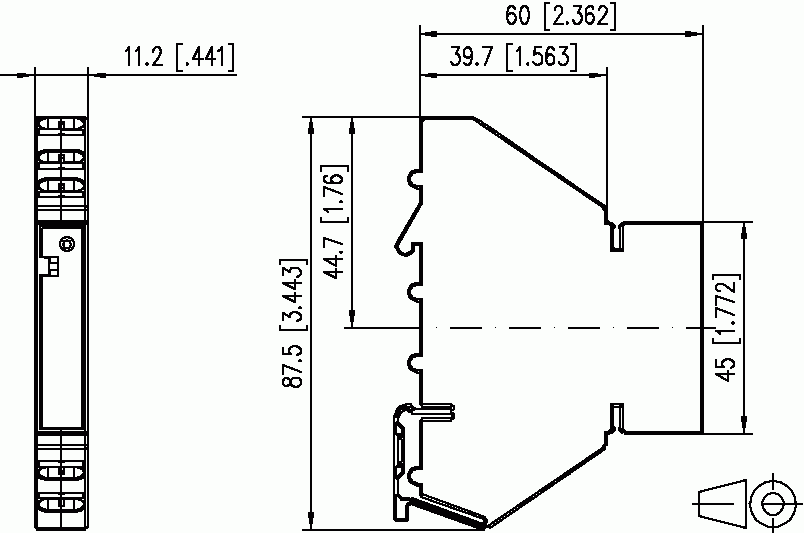

| Dimensions (W x H x D) | 11.2 x 87.5 x 60 mm |
| Weight | 43 g |
| Operating temperature range | -20 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection | IP20 |
