Kód: | 11071013 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|
Operating voltage | 24 V AC/DC |
Current consumption | approx. 13 mA |
Outputs / contact | 1 changeover contact (SPDT) |
Output / contact material | AgSnO2 |
Output / switching voltage | 250 V AC/DC |
Output / continuous current | 8 A |
Output / switching frequency | 360 cycles/h |
Response time | approx. 10 ms |
Release time | approx. 5 ms |
Mechanical endurance | 1 x 107 switching cycles |
Electrical endurance | 1 x 105 switching cycles |
Solid wire cross-section | 0.08 mm2 - 2.5 mm2 |
Stranded wire without end sleeve | 0.08 mm2 - 2.5 mm2 |
Stranded wire with end sleeve | 0.08 mm2 - 1.5 mm2 |
Display | Green, red and yellow LED |

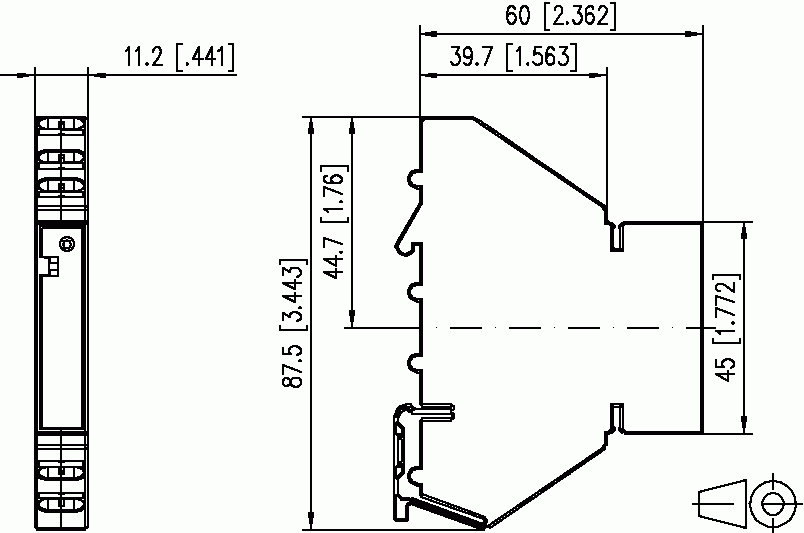

Dimensions (W x H x D) | 11.2 x 87.5 x 60 mm |
Weight | 43 g |
Operating temperature range | -20 °C to +55 °C |
Storage temperature range | -25 °C to +70 °C |
Ingress protection of the housing | IP20 |
