Metz, RSDw-E10, 230 V AC / 24 V AC/DC, 1,5-30 s
| Kód: | 11016141280417 |
- Star-delta relay with adjustable switching time for switching three-phase motors
- The time is set by means of a linear potentiometer on a relative scale
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Star-delta relay with adjustable switching time for switching three-phase motors
- The time is set by means of a linear potentiometer on a relative scale
- Star-delta relay
- Fixed switching time of 50 ms
Technická specifikace
| Operating voltage | 230 V AC / 24 V AC/DC |
| Recovery time | greater than or equal to 250 ms |

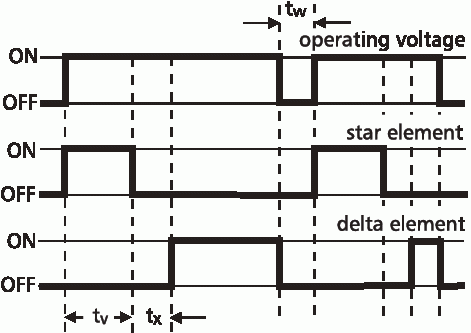

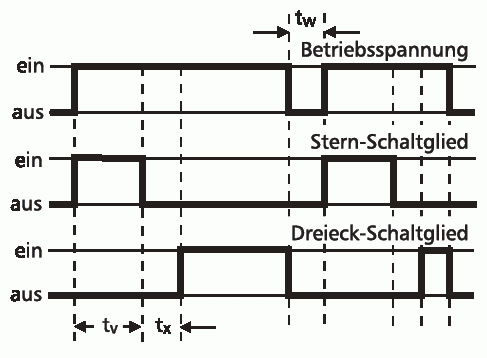

| Switching time | 50 ms |

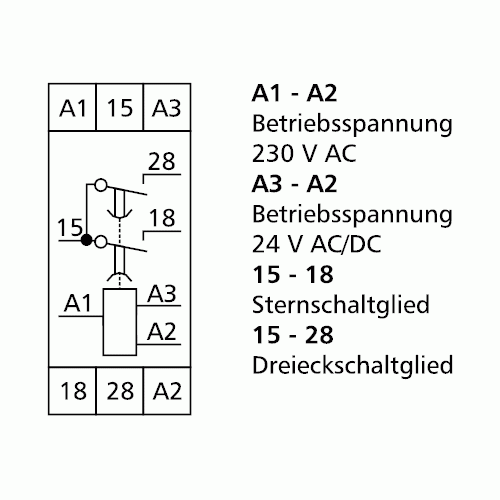

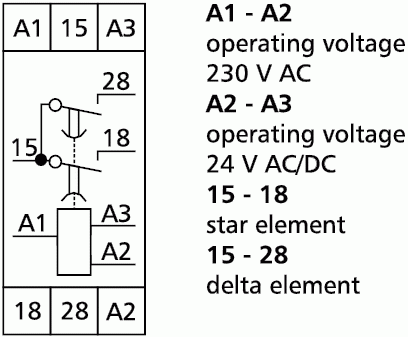

| Output / contact | 1 changeover contact (SPDT) |
| Output / contact material | AgSnO2 |
| Output / switching voltage | 250 V |
| Output / continuous current | 6 A |
| Output / switching frequency | 1200 cycles/h |
| Mechanical endurance | 3 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Cross-section | 2.5 mm2 |
| Display | Red LED |

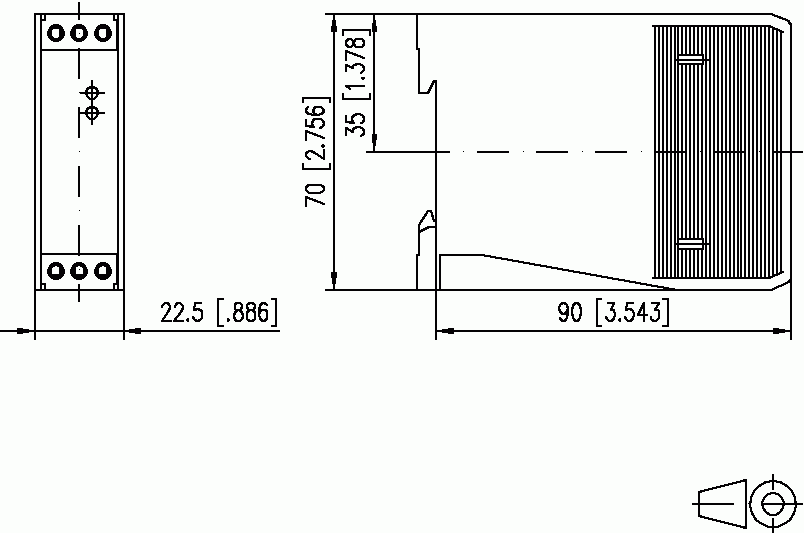

| Dimensions (W x H x D) | 22.5 x 70 x 90 mm |
| Weight | 150 g |
| Operating temperature range | -10 °C to +50 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
Originální text
Star-delta relay with adjustable switching time for switching three-phase motors. The time is set by means of a linear potentiometer on a relative scale.
- Star-delta relay
- Fixed switching time of 50 ms
