Strukturovaná kabeláž a kabeláž pro datová centra

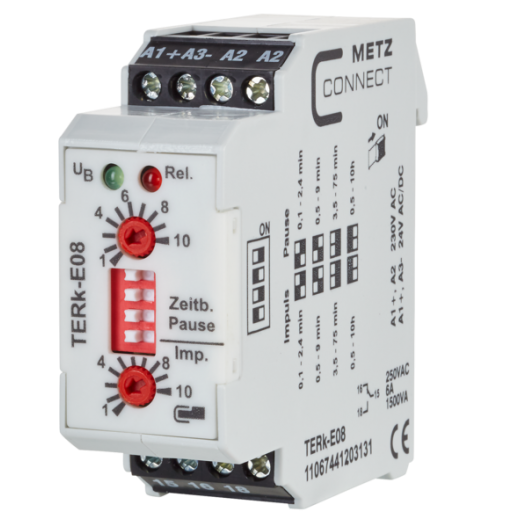

Metz, TERk-E08, 230 V AC 24 V ACDC tp 0,1 min-10h, ti 0,1 min-10 h
| Kód: | 11067441203131 |

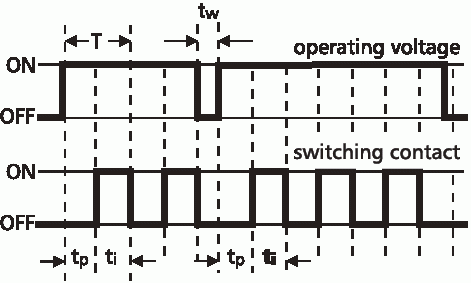

- Clock generator with separately adjustable delay and pulse times
- The time ranges can be programmed by means of the coding switches incorporated in the front
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Clock generator with separately adjustable delay and pulse times
- The time ranges can be programmed by means of the coding switches incorporated in the front
- Clock generating
- Adjustable time ranges
Technická specifikace
| Operating voltage | 230 V AC / 24 V AC/DC |
| Recovery time | greater than or equal to 50 ms |

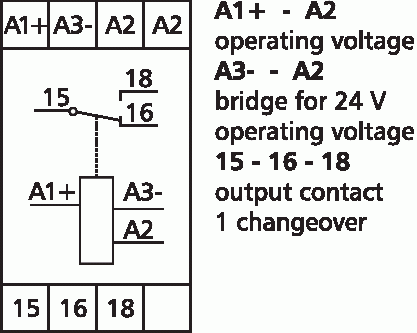

| Output / contact | 1 changeover contact (SPDT) |
| Output / contact material | AgSnO2 |
| Output / switching voltage | 250 V |
| Output / continuous current | 6 A |
| Output / switching frequency | 1200 cycles/h |
| Mechanical endurance | 3 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Cross-section | 2.5 mm2 |
| Display | Green and red LED |

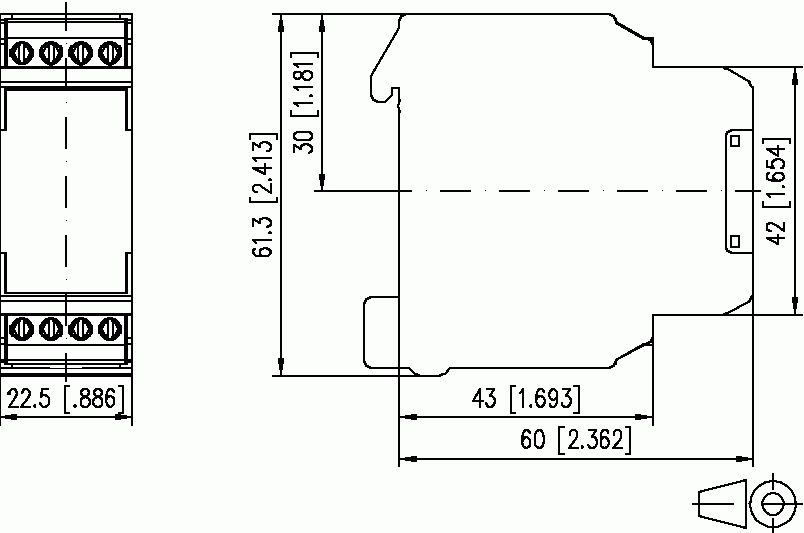

| Dimensions (W x H x D) | 22.5 x 61.3 x 60 mm |
| Weight | 70 g |
| Operating temperature range | -10 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
Originální text
Clock generator with separately adjustable delay and pulse times. The time ranges can be programmed by means of the coding switches incorporated in the front.
- Clock generating
- Adjustable time ranges
