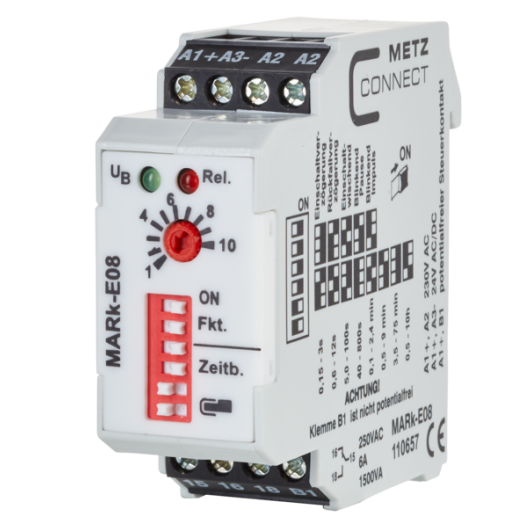

Metz, MARk-E08
| Kód: | 110657 |
- Multi-functional timer relay with incorporated coding switches to set functions
- The time is set by means of a linear potentiometer on a relative scale
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Multi-functional timer relay with incorporated coding switches to set functions
- The time is set by means of a linear potentiometer on a relative scale
- Eight adjustable time ranges from 0.15 s to 10 h.
- Five selectable functions

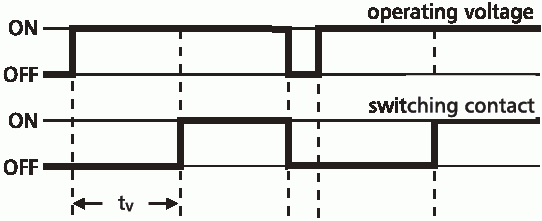

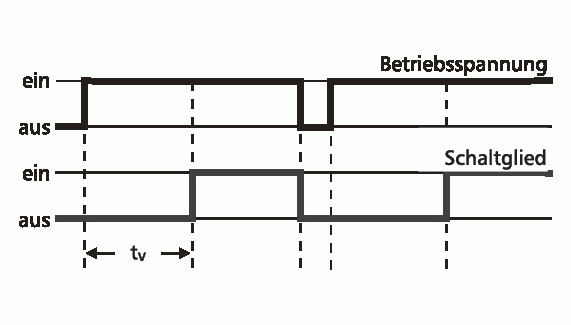

- 1. On-delayed

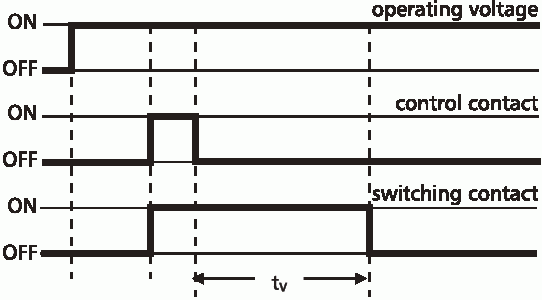

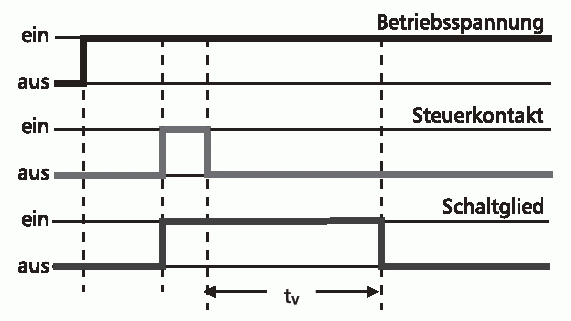

- 2. Off-delayed

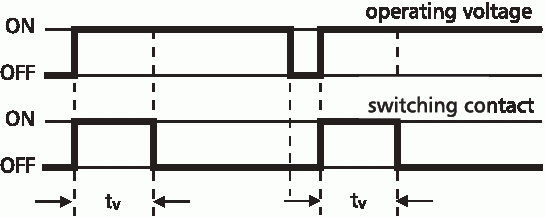

- 3. Making-pulse interval

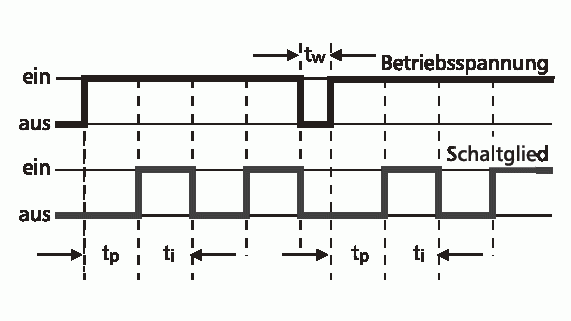

- 4. Flashing for pause start

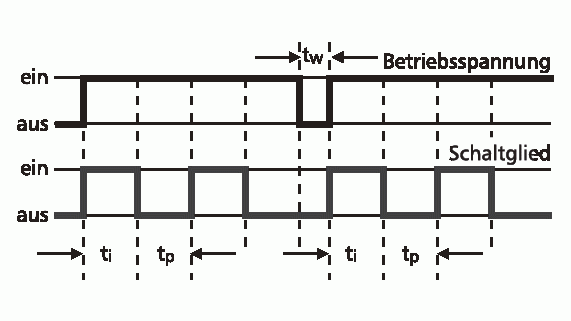

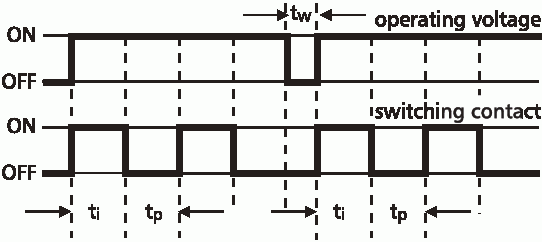

- 5. Flashing for pulse start
Technická specifikace

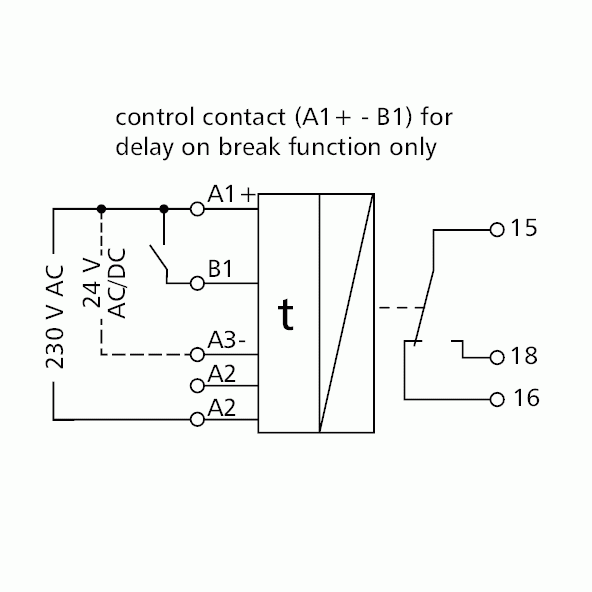

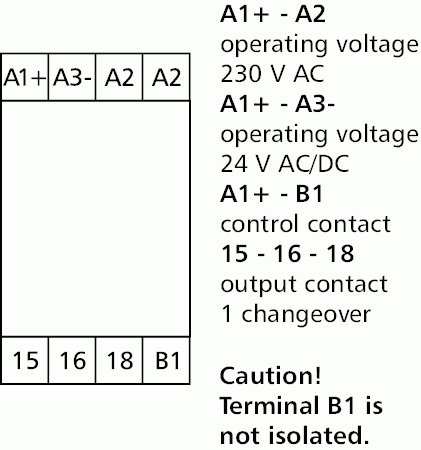

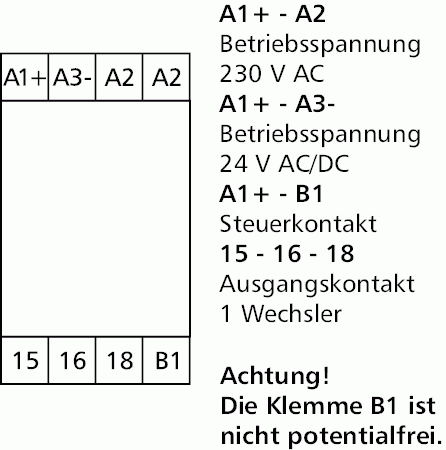

| Operating voltage | 230 V AC / 24 V AC/DC |
| Output / contact | 1 changeover contact (SPST) |
| Output / contact material | AgSnO2 |
| Output / switching voltage | 250 V |
| Output / continuous current | 6 A |
| Output / switching frequency | 1200 cycles/h |
| Recovery time | greater than 50 ms |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Cross-section | 2.5 mm2 |
| Display | Green and red LED |

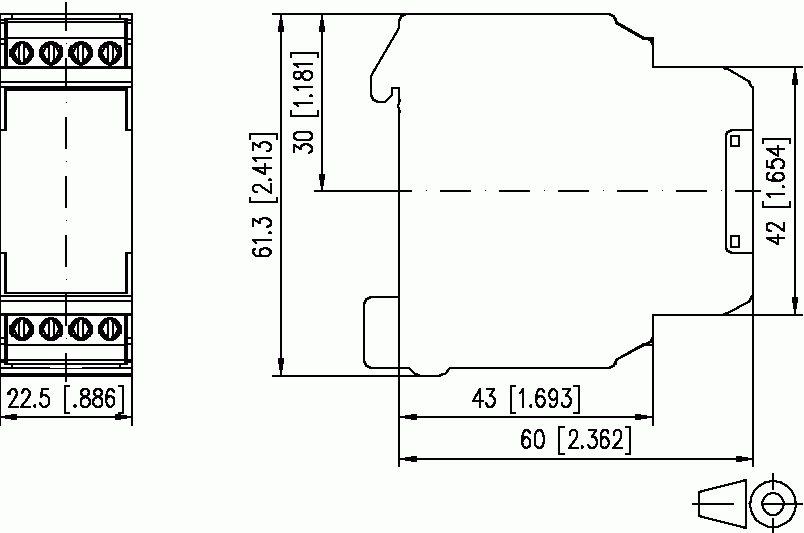

| Dimensions (W x H x D) | 22.5 x 61.3 x 60 mm |
| Weight | 70 g |
| Operating temperature range | -10 °C to +55 °C |
| Storage temperature range | -25 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
Originální text
Multi-functional timer relay with incorporated coding switches to set functions. The time is set by means of a linear potentiometer on a relative scale.
- Eight adjustable time ranges from 0.15 s to 10 h.
- Five selectable functions
- 1. On-delayed
- 2. Off-delayed
- 3. Making-pulse interval
- 4. Flashing for pause start
- 5. Flashing for pulse start
