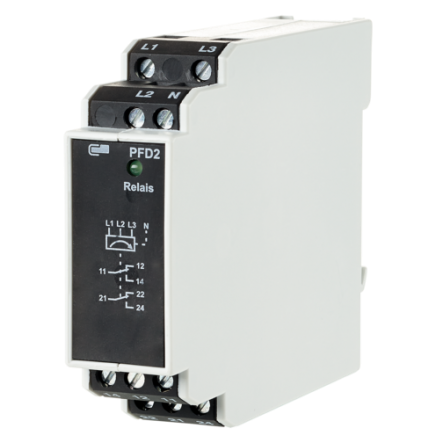

Metz, PFD2-E12
| Kód: | 110292032215 |
- The monitoring relay monitors the correct phase sequence L1-L2-L3 (direction of rotation to the right) and complete failures of individual phase voltages
- The phase voltages to be monitored are connected to the terminals L1-L2-L3; the terminals 11, 14 or 21, 24 of the relay output contacts are connected ahead of the field coil of the motor relay
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The monitoring relay monitors the correct phase sequence L1-L2-L3 (direction of rotation to the right) and complete failures of individual phase voltages
- The phase voltages to be monitored are connected to the terminals L1-L2-L3; the terminals 11, 14 or 21, 24 of the relay output contacts are connected ahead of the field coil of the motor relay

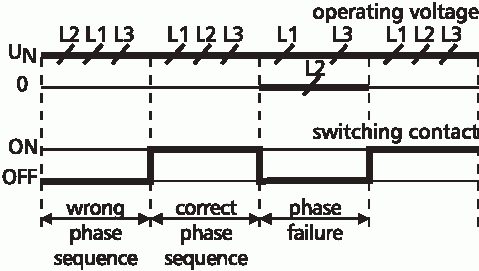

- If the phase sequence is correct, the output relay is activated (green LED is on)
- In case of total failure of a phase, the output relay returns to its neutral position (green LED is off)
- A special supply voltage is not required for the monitoring relay
- Only connect the device to N if the three phases to be monitored are connected to N over an electric circuit (e.g. temperature monitoring or similar)
Technická specifikace
| Operating voltage | 400 V AC |
| Current consumption | 20 mA |
| Response delay | 5 s |
| Output / contact | 2 changeover contacts (DPST) |
| Output / switching voltage | max. 250 V |
| Output / continuous current | max. 6 A |
| Output / switching frequency | 1200 cycles/h |
| Mechanical endurance | 1 x 107 switching cycles |
| Electrical endurance | 1 x 105 switching cycles |
| Display | Green LED |
| Dimensions (W x H x D) | 22.5 x 75 x 95 mm |
| Weight | 120 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
Originální text
The monitoring relay monitors the correct phase sequence L1-L2-L3 (direction of rotation to the right) and complete failures of individual phase voltages. The phase voltages to be monitored are connected to the terminals L1-L2-L3; the terminals 11, 14 or 21, 24 of the relay output contacts are connected ahead of the field coil of the motor relay.If the phase sequence is correct, the output relay is activated (green LED is on). In case of total failure of a phase, the output relay returns to its neutral position (green LED is off).A special supply voltage is not required for the monitoring relay. Only connect the device to N if the three phases to be monitored are connected to N over an electric circuit (e.g. temperature monitoring or similar).
