Metz, CPW-E12, 230 V AC, 0.2 - 2.5 A
| Kód: | 110281052013 |
- The cosPhi monitor is used for detecting underload
- The response value and the response time can be adjusted
- It can also be used in combination with a frequency converter (frequency: 2 to 200 Hz)
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The cosPhi monitor is used for detecting underload
- The response value and the response time can be adjusted
- It can also be used in combination with a frequency converter (frequency: 2 to 200 Hz)
- Monitoring is accomplished by recognizing the phase shift between current and voltage
- This phase angle varies depending on the motor load

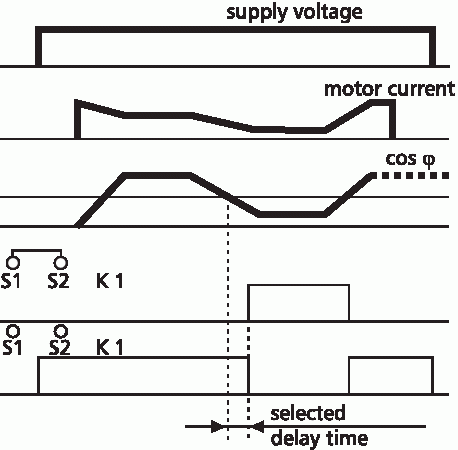

- The functions can be adjusted by means of bridges S1 - S2 - S3S1 - S2 open = relay deactivated with underloadS1 - S2 bridged = relay activated with underloadS1 - S3 open = with fault memoryS1 - S3 bridged = without fault memory
- The module can be unblocked remotely by means of a closing contact on S1 - S3
- If there is a fault memory (no bridge over S1-S3), the fault message is active until it is acknowledged or the supply voltage is interrupted
Technická specifikace
| Operating voltage | 230 V AC |
| Frequency range | 2 to 200 Hz |
| Input / motor voltage | 230 V AC / 400 V AC |
| Input / current | min. 0.2 A / max. 10 A |
| Input / cosPhi response value | 0 to 0.97, adjustable |
| Input / response time | 1 to 100 s, adjustable |
| Output | 1 changeover contact (SPDT) |
| Output / switching voltage | max. 250 V AC |
| Output / continuous current | max. 4 A |
| Output / switching frequency | 1200 cycles/h |
| Display | Green and red LED |

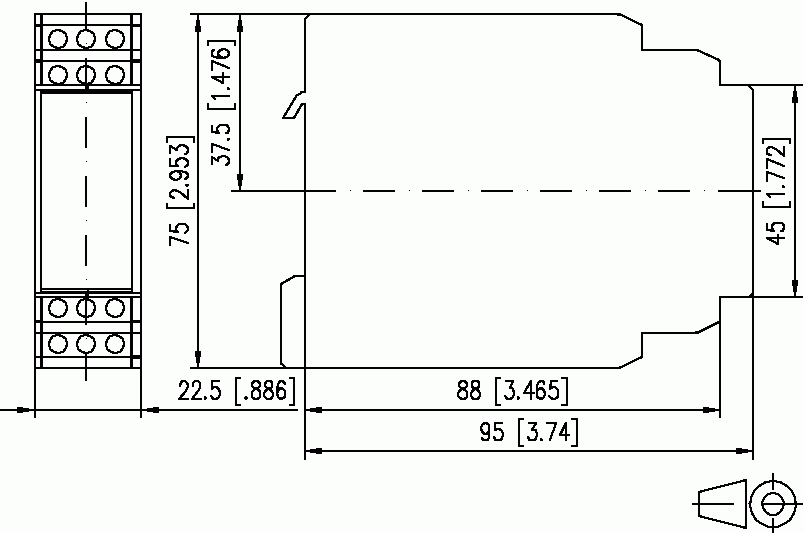

| Dimensions (W x H x D) | 22.5 x 75 x 95 mm |
| Weight | 170 g |
| Operating temperature range | 0 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal block | IP40 / IP20 |
Originální text
The cosPhi monitor is used for detecting underload. The response value and the response time can be adjusted. It can also be used in combination with a frequency converter (frequency: 2 to 200 Hz). Monitoring is accomplished by recognizing the phase shift between current and voltage. This phase angle varies depending on the motor load.
The functions can be adjusted by means of bridges S1 - S2 - S3S1 - S2 open = relay deactivated with underloadS1 - S2 bridged = relay activated with underloadS1 - S3 open = with fault memoryS1 - S3 bridged = without fault memoryThe module can be unblocked remotely by means of a closing contact on S1 - S3.If there is a fault memory (no bridge over S1-S3), the fault message is active until it is acknowledged or the supply voltage is interrupted.
