Kód: | 11028313 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|
Operating voltage AC | 230 V AC |
Operating voltage (AC/DC) | 24 V AC/DC |
Recovery time | approx. 20 ms |
Output / voltage | Operating voltage |
Output / max. current | 6 A AC1 / 1.5 A AC3 |
Response time for level 1 | 0 ms |
Response time for level 2 | approx. 30 ms |
Start-up delay | adjustable time of up to 30 s |
Switch-off delay | adjustable time of up to 60 s |

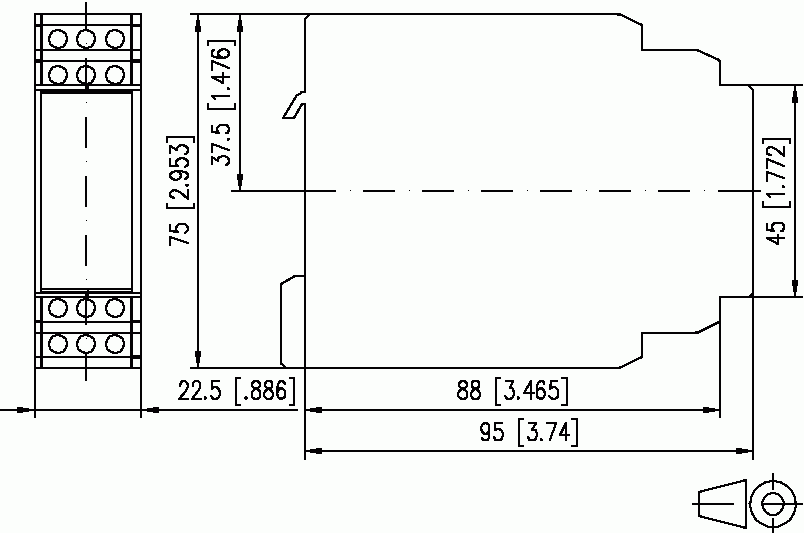

Dimensions (W x H x D) | 22.5 x 75 x 95 mm |
Weight | 150 g |
Operating temperature range | -5 °C to +55 °C |
Storage temperature range | -20 °C to +70 °C |
Ingress protection for housing / terminal block | IP40 / IP20 |

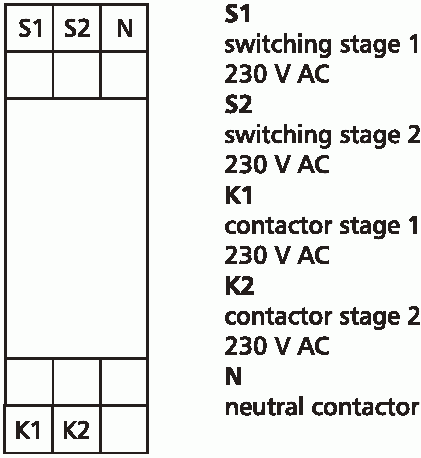

The fan timer relay was designed especially for controlling two-level motors. Response and switch-off delay can be adjusted separately and infinitely. A two-level switch is used for activation. The motor contactors are activated by two mutually blocking outputs.Mode of operation:
