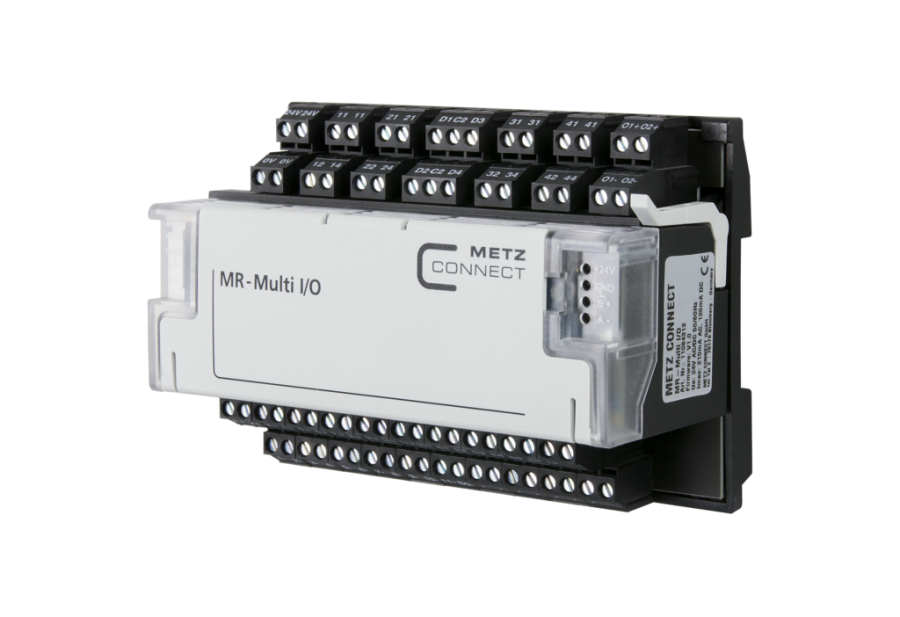

Metz, MR-Multi-IO Modbus RTU
| Kód: | 11084313 |

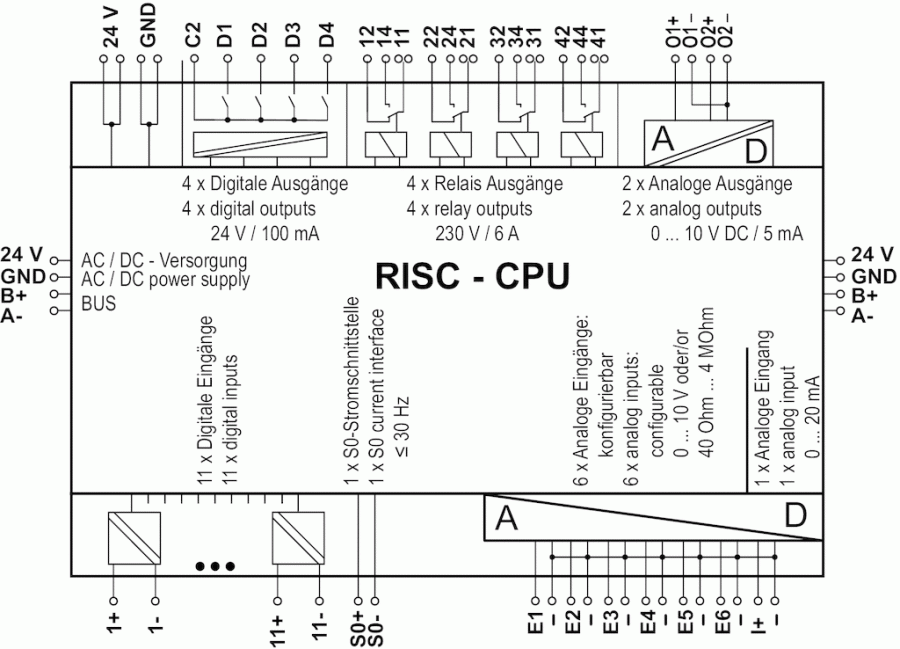

- The Modbus module MR-Multi I/0 is a compact and rapidly to install solution to connect digital and analog signals from the actor and sensor level directly to a control unit in building automation via Modbus RTU protocol
- 29 I/Os, some of them are configurable, are available for different tasks
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The Modbus module MR-Multi I/0 is a compact and rapidly to install solution to connect digital and analog signals from the actor and sensor level directly to a control unit in building automation via Modbus RTU protocol
- 29 I/Os, some of them are configurable, are available for different tasks
- With strong inductive loads, we recommend protecting the relay contacts with an RC element
- The inputs and outputs can be switched and scanned by means of standard registers via a Modbus master

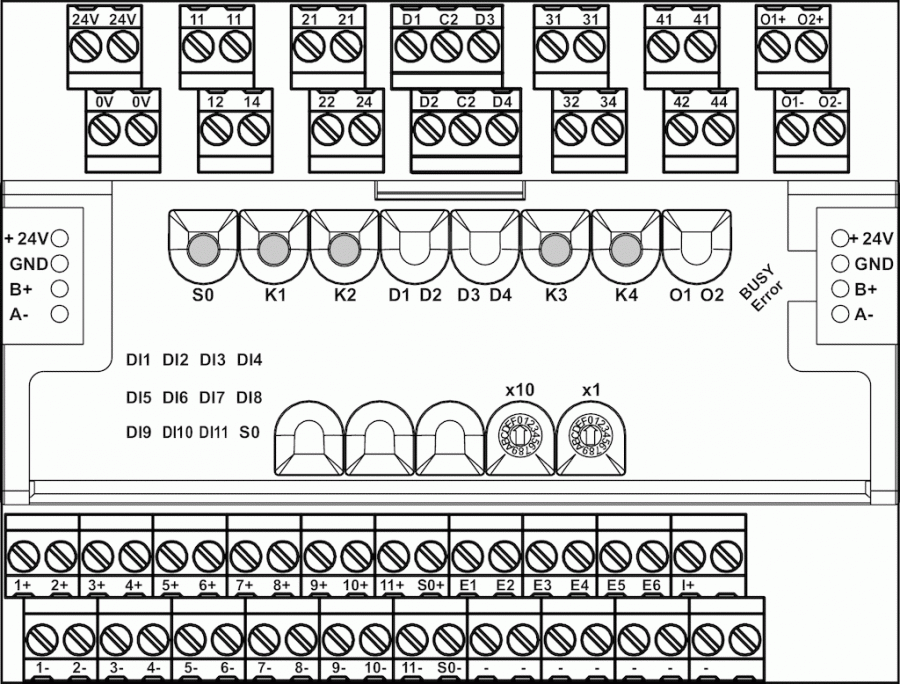

- Module address, bit rate and parity are set with two rotary switches on the front or by software
- Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets
Technická specifikace
| Protocol | Modbus RTU |
| Address range | 00 to 99 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 1200 to 115200 bit/s |
| Operating voltage | 24 V AC/DC / +/- 10% (SELV) |
| Current consumption | 220 mA (AC) / 110 mA (DC) |
| Relative duty cycle | 100 % |
| Inputs / digital | 11 x Optocoupler, |
| galvanically isolated | |
| Input / S0 | 1 x per DIN EN 62053-31, Class A |
| Inputs analog | configurable |
| for resistance or | 6 x 40 Ohm to 4 MOhm |
| for voltage | 6 x 0 to 10 V DC |
| Input / current | 1 x analog 0 to 20 mA DC |
| Outputs / Relay | 4 x changeover (4PDT) / 250 V AC / 6 A |
| Outputs / PhotoMOS | 4 x 24 V DC / 100 mA |
| galvanically isolated | |
| Outputs / voltage | 2 x analog 0 to 10 V DC / 5 mA, |
| galvanically isolated | |
| Dimensions (WxHxD) | 125 x 93 x 60.81 mm, 7 TE, TH35 |
| Weight | 385 g |
| Operating temperature | -5° to +55°C |
| Storage temperature | -25° to + 70° C |
| Protection class | IP20 |
