Metz, MR-AIO42-IP65 Modbus RTU
| Kód: | 11084213IP |

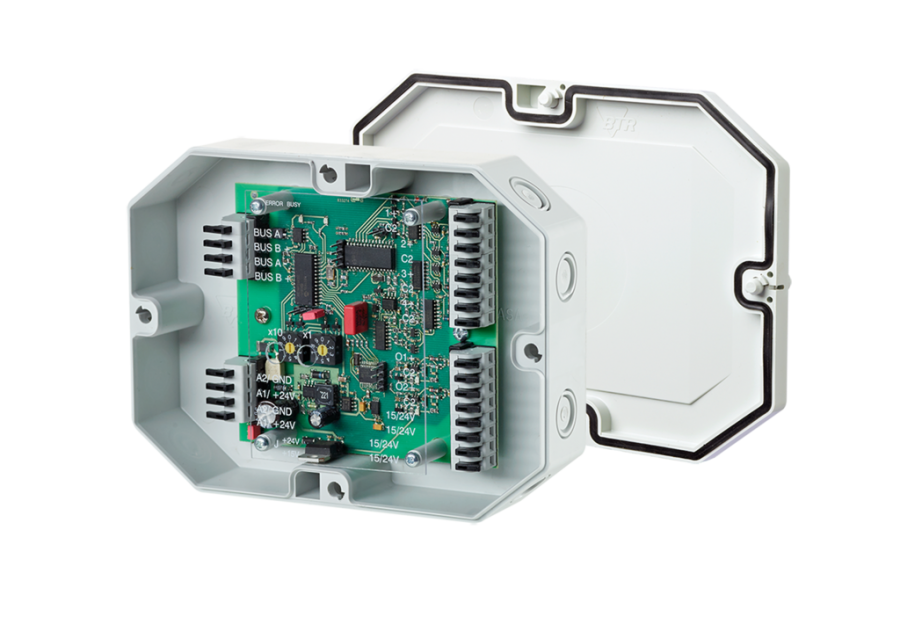

- The Modbus module in an IP65 housing with 4 individually configurable resistance or voltage inputs and 2 analog outputs was developed for decentralized tasks
- The inputs are suitable for detecting resistances and voltages of for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc.
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The Modbus module in an IP65 housing with 4 individually configurable resistance or voltage inputs and 2 analog outputs was developed for decentralized tasks
- The inputs are suitable for detecting resistances and voltages of for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc.
- The outputs are suitable as encoder for control variables for example for electrical vent and mixing valves, valve positions, etc.
- Via a Modbus master the inputs can be configured universally by standard registers and the outputs can be set
- The module address, the bit rate and the parity are set with two rotary switches or by software
Technická specifikace
| Protocol | Modbus RTU |
| Address range | 00 to 99 |
| Bus interface | RS485 (two-wire-bus) |
| Transmission rate | 1200 to 115200 bit/s |
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | 90 mA (AC) / 35 mA (DC) |
| Relative duty cycle | 100 % |
| Inputs | 4x individually configurable |
| Input / resistance | 40 Ohm to 4 MOhm |
| Input / voltage | 0 to 10 V DC |
| Outputs | 2x analog |
| Output / voltage | 0 V to 10 V DC |
| Output / current | 5 mA at 10 V DC |
| Display | LED green, red, yellow |
| Dimensions (W x H x D) | 160 x 40.7 x 120 mm |
| Weight | 104 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Type of protection for housing / terminal blocks | IP65 / IP20 |
Originální text
- The Modbus module in an IP65 housing with 4 individually configurable resistance or voltage inputs and 2 analog outputs was developed for decentralized tasks
- The inputs are suitable for detecting resistances and voltages of for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc.
- The outputs are suitable as encoder for control variables for example for electrical vent and mixing valves, valve positions, etc.
- Via a Modbus master the inputs can be configured universally by standard registers and the outputs can be set
- The module address, the bit rate and the parity are set with two rotary switches or by software
