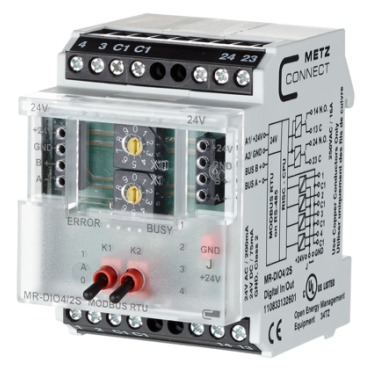

Metz, MR-DIO42S Modbus RTU
| Kód: | 110833132601 |
- The Modbus module with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks
- It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The Modbus module with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks
- It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers
- It can also be used to control 2 motorized fire dampers. With strong inductive loads, we recommend protecting the relay contacts with an RC element
- The inputs can be used as contact or voltage inputs
- The inputs and outputs can be switched and scanned by means of standard registers via a Modbus master
- Module address, bit rate and parity are set with two rotary switches on the front or by software
- Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets
Technická specifikace
| Protocol | Modbus RTU |
| Address range | 00 to 99 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 1200 to 115200 bit/s |
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | 200 mA (AC) / 75 mA (DC) |
| Relative duty cycle | 100 % |
| Inputs | 4 x digital |
| Input / voltage | 30 V DC |
| Input / high signal | more than 8 V AC/DC |
| Output / contacts | 2 NO contacts (DPST-NO) |
| Output / switching voltage | 250 V AC |
| Output / continuous current | 16 A / output |
| Output / switch-on current | 160 A (less than 20 ms) |
| Display | Green, red and yellow LED |
| Dimensions (W x H x D) | 50 x 69.3 x 60 mm |
| Weight | 126 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
Originální text
- The Modbus module with 4 digital inputs and 2 relay outputs with manual control was developed for decentralized switching tasks
- It is suitable for accommodating, for example, light switches and window contacts in a room, switching two light strips or controlling louvers
- It can also be used to control 2 motorized fire dampers. With strong inductive loads, we recommend protecting the relay contacts with an RC element
- The inputs can be used as contact or voltage inputs
- The inputs and outputs can be switched and scanned by means of standard registers via a Modbus master
- Module address, bit rate and parity are set with two rotary switches on the front or by software
- Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets
