Metz, MR-TO4 Modbus RTU
| Kód: | 11083013 |

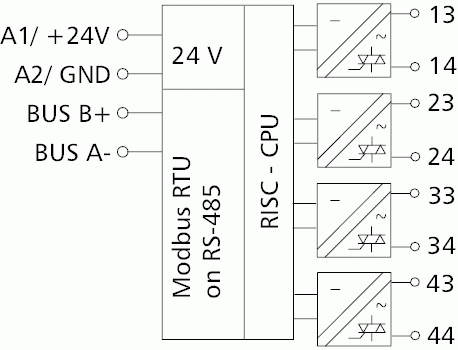

- The Modbus module with 4 digital triac outputs was developed for decentralized switching tasks
- It is suitable for switching electrical components, such as relays, contactors, HVAC valves, etc.
- The outputs can be switched by means of standard registers via a Modbus master
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The Modbus module with 4 digital triac outputs was developed for decentralized switching tasks
- It is suitable for switching electrical components, such as relays, contactors, HVAC valves, etc.
- The outputs can be switched by means of standard registers via a Modbus master
- In addition, the outputs can be overridden manually by means of switches on the device
- Module address, bit rate and parity are set with two rotary switches on the front or by software
- Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets
Technická specifikace
| Protocol | Modbus RTU |
| Address range | 00 to 99 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 1200 to 115200 bit/s |
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | 100 mA (AC) / 40 mA (DC) |
| Relative duty cycle | 100 % |
| Output / contacts | 4 digital outputs (triac) |
| Output / switching voltage | 24 V AC up to max. 250 V AC |
| Output / continuous current | 0.5 A / output |
| Output / switching current | 0.8 A (less than 30 s) |
| Output / switch-on current | 10 A (less than 20 ms) |
| Display | Green, red and yellow LED |
| Dimensions (W x H x D) | 35 x 69.3 x 60 mm |
| Weight | 95 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
Originální text
- The Modbus module with 4 digital triac outputs was developed for decentralized switching tasks
- It is suitable for switching electrical components, such as relays, contactors, HVAC valves, etc.
- The outputs can be switched by means of standard registers via a Modbus master
- In addition, the outputs can be overridden manually by means of switches on the device
- Module address, bit rate and parity are set with two rotary switches on the front or by software
- Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets
