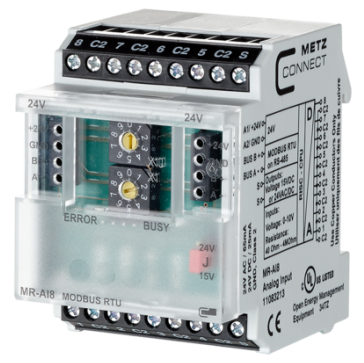

Metz, MR-AI8 Modbus RTU
| Kód: | 11083213 |
- The Modbus module with 8 individually configurable resistance or voltage inputs was developed for decentralized switching tasks
- It is suitable for detecting resistances and voltages of, for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc.
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- The Modbus module with 8 individually configurable resistance or voltage inputs was developed for decentralized switching tasks
- It is suitable for detecting resistances and voltages of, for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc.
- The inputs can be configured universally by means of standard registers via a Modbus master
- Module address, bit rate and parity are set with two rotary switches on the front or by software
- Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets
Technická specifikace
| Protocol | Modbus RTU |
| Address range | 00 to 99 |
| Bus interface | RS485 (two-wire bus) |
| Transmission rate | 1200 to 115200 bit/s |
| Operating voltage | 24 V AC/DC ± 10% (SELV) |
| Current consumption | 65 mA (AC) / 25 mA (DC) |
| Relative duty cycle | 100 % |

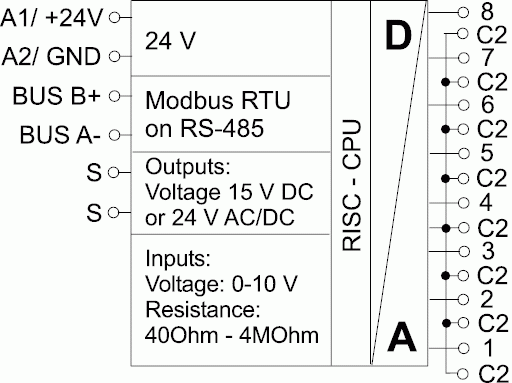

| Inputs | 8 x individually configurable |
| Input / resistance | 40 Ohm to 4 MOhm |
| Input / voltage | 0 V to 10 V DC |
| Input / resolution | 10 mV (0 to 100 %) |
| Input / error | approx. +/- 100 mV |
| Display | Green and red LED |
| Dimensions (W x H x D) | 50 x 69.3 x 60 mm |
| Weight | 104 g |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -20 °C to +70 °C |
| Ingress protection for housing / terminal blocks | IP40 / IP20 |
Originální text
- The Modbus module with 8 individually configurable resistance or voltage inputs was developed for decentralized switching tasks
- It is suitable for detecting resistances and voltages of, for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc.
- The inputs can be configured universally by means of standard registers via a Modbus master
- Module address, bit rate and parity are set with two rotary switches on the front or by software
- Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets
