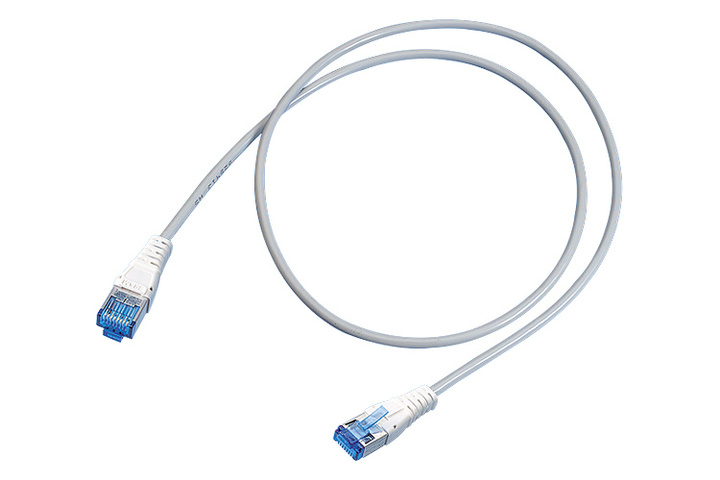

R&M, Patch kabel S/FTP Cat.6 Real10 4P, LSFROH, 2 m
| Kód: | R302334 |
- Stínění: S/FTP
- Vnější plášť: LSFRZH
- Průměř měděného vodiče: AWG 26/7
| Cena: | dostupná po přihlášení | ||
| Dostupnost: | Brno |
Praha |
na vyžádání |
| Množství: | ks |
|
|
- Stínění: S/FTP
- Vnější plášť: LSFRZH
- Průměř měděného vodiče: AWG 26/7
- Stíněno po párech: AL/fóilie
- Celkové stínění: měděný oplet
- Vnější průměr: max. 6.2 mm
Standardy
- Compliant with Cat. 6, Class E (250 MHz) requirements: ISO/IEC 11801 ed. 2.2
- Compliant with Cat. 6 component standard IEC 60603-7-4
- Compliant with Cat. 6 component standard IEC 60603-7-5
- Fulfilled the standard IEC 61935-2:2010
Technická specifikace
| R&M, Patch kabely | |
| Typ konektoru (A) | RJ45 |
| Kategorie konektoru (A) | Real10 Cat. 6 |
| Stínění konektoru (A) | Ano |
| Typ konektoru (B) | RJ45 |
| Kategorie konektoru (B) | Real10 Cat. 6 |
| Stínění konektoru (B) | Ano |
| Kategorie | Real10 Cat. 6 |
| Stínění kabelu | S/FTP |
| Počet vláken | 8 |
| Stočení | 4 páry |
| Plášť kabelu | LSFRZH |
| Celkový průměr | max. 6.2 mm |
| Typ vlákna | lanko |
| Průměr vodiče | AWG 26/7 |
| Barva | kabel šedý (RAL 7035) |
Originální text
Patch Cord Real10 Cat. 6, S/FTP, 4P, LSFRZH, gray, RJ45/s-RJ45/s, 0.5 m
Cable identification: S/FTP
Outer jacket: LSFRZH
Conductor diameter copper strand: AWG 26/7
Screened in pairs: AL/foil
Overall screen: copper braid
Outer diameter: max. 6.2 mm
Standards
- Compliant with Cat. 6, Class E (250 MHz) requirements: ISO/IEC 11801 ed. 2.2
- Compliant with Cat. 6 component standard IEC 60603-7-4
- Compliant with Cat. 6 component standard IEC 60603-7-5
- Fulfilled the standard IEC 61935-2:2010
General Data
| Description [Unit] | Value/Value range |
|---|---|
| Cable class | patch cord |
| Connector class | connector |
| Connector type (A) | RJ45 |
| Category connector (A) | Real10 Cat. 6 |
| Shielding connector (A) | Yes |
| Connector type (B) | RJ45 |
| Category connector (B) | Real10 Cat. 6 |
| Shielding connector (B) | Yes |
| Category | Real10 Cat. 6 |
| Cable shielding | S/FTP |
| Number of wires | 8 |
| Stranding | 4 pairs |
| Cable jacket material | LSFRZH |
| Cable overall diameter | max. 6.2 mm |
| Wire type | stranded wire |
| Conductor diameter | AWG 26/7 |
| Color Code RAL | 7035 Light gray |
| Cable length [m] | 0.5 |
Flexible cable, S/FTP, 4 x 2 x AWG 26/7, LSFRZH, 7035 Light gray. Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-3C and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Mounted on both sides with
RJ45 connector compliant with Cat. 6 component standard. Key standard: IEC 60603-7 RJ45 category 6; IEC 60603-7-1 to 5. Strain-relief function in acc. with TIA 568-C.
Complies with requirements of Cat. 6 for the establishing of transmission links of class E and class EA in acc. with ISO/IEC 11801 ed. 2.2, June 2011 and EN 50173-1, May 2011 (DIN EN 50173-1). Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four.
Optional:
Visual coding, mechanical coding and lock protection.
