Kód: | R35409 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
u vás: do 2 pracovních dní |
Množství: | ks |
|
Pojme až patnáct Global nestíněných držáků propojovacích modulů 2U či 2U Global záslepek. Max. kapacita 60 nestíněných RJ45 pro připojení modulů.
Standardy
Obsah balení:
KÓD: R35409
R&M, Patch panely neosazené | |
Třída ochrany IP | IP 20 |
Poe | Ano |
Stínění | Ne |
Osazení | prázdný |
Šířka (palec) ["] | 19 |
Rack montážní verze | patch panel |
Kapacita (portů) | 60 |
Výška jednotky (U) [U] | 3 |
Barevný kód NCS | S 2502-B |
Barva | středně šedá |
Rozměry | 132.5 x 482.6 x 221 mm |
Materiál | ocel: DC01 (1.0330), 1.5 mm / hliník / plast: PA66, vyztužený skelným vláknem, bezhalogenový |
Holds up to fifteen Global/u connection module holders, Global blind covers or six Global adapter units. Max. capacity of 60 RJ45/u connection modules.
Scope of supply
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Fastening (inch) ["] | 19 |
Height units (U) [U] | 3 |
Rack mounting version | patch panel |
Capacity (ports) | 60 |
Shielding connector (A) | No |
Color Code NCS | S 2502-B |
Color | medium gray |
Assembly | empty |
Dimensions | 132.5 x 482.6 x 221 mm |
Material | steel: DC01 (1.0330), 1.5 mm / aluminum / plastic: PA66, fiber-glass reinforced, halogenfrei |

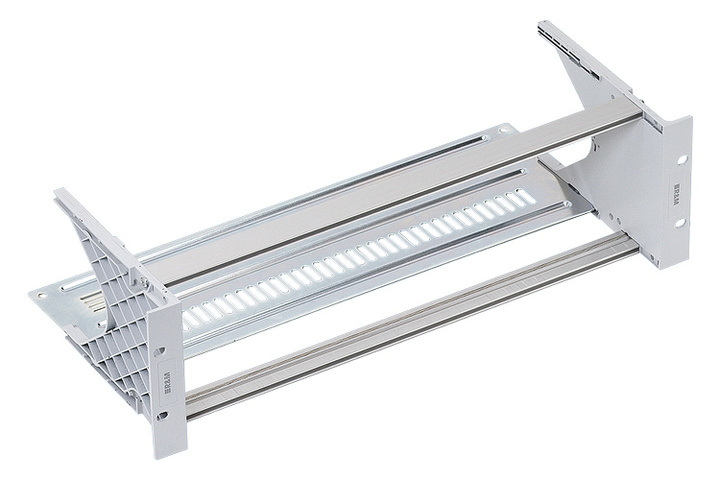

Modular patch panel accommodating up to fifteen connection module holders Global/u, installation-friendly thanks to snap-and-go technique, Global blind cover or FiberModul 5.6HP. Designed to accommodate the R&M security and the R&M environment system, with its 3-level protection concept: color coding, mechanical coding, locking option. Exchangeable labeling strips, integral cable tie shelf, fastening kit, labeling fields, tool-free locking and unlocking system. Profile aluminum, colorless chromatized; cable tie shelf sheet steel (DC01A) 1.5 mm, color blue passivated; side panel plastic (PA), fiberglass-reinforced, halogen-free, color medium gray (NCS 2502-B).
With a capacity of up to 60 unshielded RJ45 connection modules of Category 5, class D, Category 6, class E and Real10 Category 6, class EA for the establishing of transmission channels with up to 4 plugged connections or 15 FiberModuls 5.6HP, splice or breakout version, for 60 E-2000™ Compact or SC-RJ adapters.
