Kód: | R812467 |
Cena: | dostupná po přihlášení | ||
Dostupnost: | Brno |
Praha |
na vyžádání |
Množství: | ks |
|
S kapacitou pro 24 propojovacích modulů Special v Cat. 5e, Real10 a Cat. 6, nestíněné
Standardy
Obsah balení:
KÓD: R812467
R&M, Patch panely neosazené | |
Třída ochrany IP | IP 20 |
Poe | Ano |
Držák pro konektor / modul | Speciální (bez montážní desky) |
Osazení | prázdný |
Šířka (palec) ["] | 19 |
Rack montážní verze | sub-rack |
Kapacita (portů) | 24 |
Výška jednotky (U) [U] | 1 |
Barevný kód NCS | S 2502-B |
Barva | středně šedá |
Rozměry | 43.65 x 482.6 x 98.4 mm |
Materiál | plast: PC, vyztužený skelným vláknem |
With a capacity for 24 connection modules Special with Cat. 5e and Real10 Cat. 6, unshielded.
Scope of supply
Standards
General Data
Description [Unit] | Value/Value range |
---|---|
Fastening (inch) ["] | 19 |
Height units (U) [U] | 1 |
Rack mounting version | sub-rack |
Capacity (ports) | 24 |
Holder for connector / module | Special (without mounting plate) |
Color Code NCS | S 2502-B |
Color | medium gray |
Assembly | empty |
Dimensions | 43.65 x 482.6 x 98.4 mm |
Material | plastic: PC, fiber-glass reinforced |

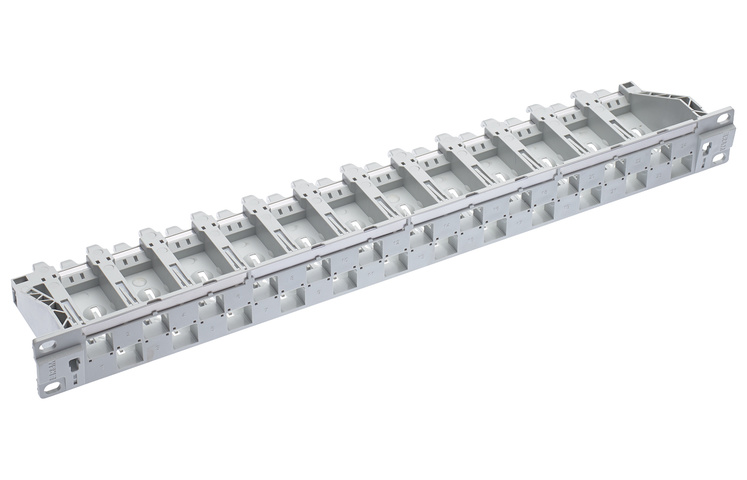

Modular patch panel with integrated cable tie shelf, 19" fastening kit, labeling fields with exchangeable labeling strips, prepared for optional two patch cord rings. The ports are prepared for a visual color coding system. Panel polycarbonate, fiber-glass-reinforced, halogen-free material, UL 94 listed. Color medium gray, NCS 2502-B.
With a capacity of up to 24 unshielded RJ45 connection modules of Category 5, class D and Category 6, class E for the establishing of transmission channels with up to 4 plugged connections.
