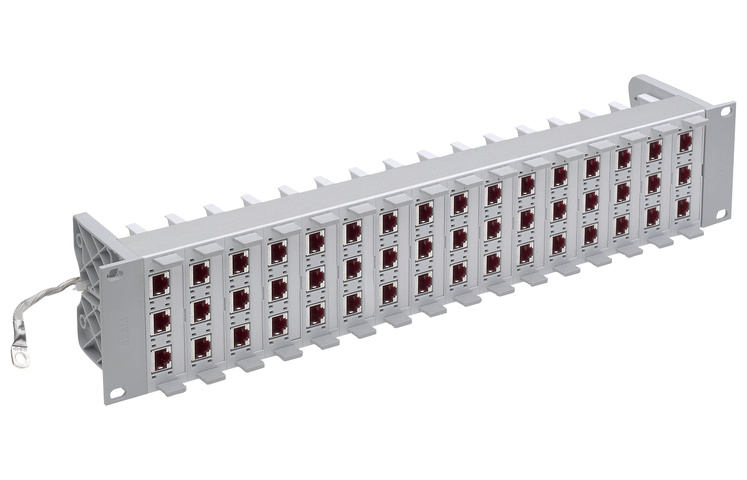

19" 2U Global Patch Panel 48xRJ45/s, Cat. 6_A EL, fully populated

Scope of supply

• 19" 2U Global patch panel/s
• 16 connection module holders 2U Global/s
• Grounding system
• 48 Cat. 6_A EL connection modules, RJ45/s incl. dust covers
• Labeling strips
• 19" mounting kit
• Cable ties
• Installation instructions

Standards

• IEC 60603-7-51: Electrical Characteristics of the Telecommunication Outlets
• ISO/IEC 11801 ed. 2.2: June 2011
• EN 50173-1: May 2011

General Data

Modular patch panel accommodating up to sixteen connection module holders 2U Global/s, installation-friendly thanks to snap-and-go technique, featuring a complete grounding system and 2U Global blind cover. Designed to accommodate Designed to accommodate the R&M security and the R&M environment system, with its 3-level protection concept: color coding, mechanical coding, locking option. Exchangeable labeling strips, fastening kit, labeling fields, tool-free locking and unlocking system. Automatic ground contacting by spring contacts. Profile aluminum, colorless chromatized; side panel plastic (PC), fiberglass-reinforced, halogen-free, color medium gray (NCS 2502-B).

16 slots populated with

Connection module holder 2U Global, shielded, plastic (PC), halogen-free, color light gray (NCS 1005-R80B).

48 ports populated with

RJ45 connection module of Cat. 6_A ISO, for the setting up of transmission channels of Class E_A with up to 4 connectors acc. to ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1 May 2011 (DIN EN 50173-1), complies with Cat. 6_Arequirements of the standards ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1 May 2011, as well the U.S. standard Cat. 6_A according to TIA 568-C.2, re-embedded tested in acc. with IEC 60603-7-51 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

Tested in line with R&M's manufacturing control, performing 100% inspection. Each module has an own serial number and is traceable.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with ≥4 insertion cycles acc. to IEC 60352-3, contact resistance 1000 Veff. PoE and PoE+ compatible according to IEC 60512-99-001. With integral cable strain relief, including dust cover, nickel plated zinc die-cast housing, ground contacting through 1 contact finger for flat connectors AMP 2.8 x 0.5 mm.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 6_A EL, die-cast, shielded, dust cover and mounting plate.
