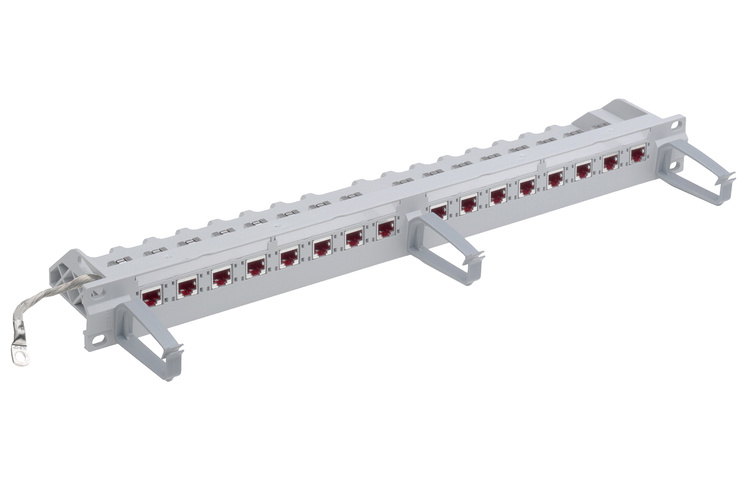

19" 1U Patch Panel 16xRJ45/s, Cat. 6_A EL, fully populated

Scope of supply

• 19" 1U 16-port patch panel, empty, shielded
• 16 Cat. 6_A EL connection modules, RJ45/s incl. dust covers
• 19" mounting kit
• 3 jumpering brackets
• 4 labeling strips
• Cable ties
• Installation instructions

Standards

• IEC 60603-7-51: Electrical Characteristics of the Telecommunication Outlets
• ISO/IEC 11801 ed. 2.2: June 2011
• EN 50173-1: May 2011

General Data

Patch panel with integrated cable tie shelf and implemented 19" grounding kit, 19" fastening kit, labeling field, integral cable guiding on the same height unit, designed to accommodate the R&M security and the R&M environment system, halogen-free materials, color patch panel medium gray (NCS 2502-B), jumpering bracket gray (RAL 7000).

16 ports populated with

RJ45 connection module of Cat. 6_A ISO, for the setting up of transmission channels of Class E_A with up to 4 connectors acc. to ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1 May 2011 (DIN EN 50173-1), complies with Cat. 6_Arequirements of the standards ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1 May 2011, as well the U.S. standard Cat. 6_A according to TIA 568-C.2, re-embedded tested in acc. with IEC 60603-7-51 and 60512-27-100, interoperable and backwards compatible with Category 6 and Category 5e.

Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz and 100 m.

Tested in line with R&M's manufacturing control, performing 100% inspection. Each module has an own serial number and is traceable.

Compatible with RJ standard plugs (RJ11, RJ12, RJ45), connection of installation cables AWG 26 – 22 (0.4 mm – 0.65 mm) and flexible cables AWG 26/7 – AWG 22/7 without special tools. Parallel pair termination without crossover in acc. with TIA 568-A/B, gold-plated bronze contacts for >1000 mating cycles, IDC contacts with ≥4 insertion cycles acc. to IEC 60352-3, contact resistance 1000 Veff. PoE and PoE+ compatible according to IEC 60512-99-001. With integral cable strain relief, including dust cover, nickel plated zinc die-cast housing, ground contacting through 1 contact finger for flat connectors AMP 2.8 x 0.5 mm.

Material: halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Connection module Cat. 6_A EL, die-cast, shielded, dust cover and mounting plate.
